高速串行码型触发软件选件

High-speed serial pattern trigger
打开灯箱
High-speed serial pattern trigger
打开灯箱
High-speed serial pattern trigger
打开灯箱
High-speed serial pattern trigger High-speed serial pattern trigger High-speed serial pattern trigger

主要特点

  • 分析高达 16 Gbps 的高速串行接口
  • 基于硬件的 CDR 适用于任意输入通道
  • 定义高达 160 比特的单比特或双比特码型
  • 解码 8B/10B 和 128B/132B 符号
  • 可在任意 R&S®RTP 示波器上进行升级
  • R&S oscilloscopes | Multi-domain

简介

R&S®RTP-K140/141 选件提供高速串行码型触发功能,能够针对从串行信号中提取的嵌入式时钟进行触发。R&S®RTP 通过基于硬件的时钟数据恢复 (CDR) 实现此操作,该功能支持的最大标称数据率高达 8 Gbps 或 16 Gbps,具体取决于选择的选件。

特性和优点

最高 16 Gbps 的时钟数据恢复

R&S®RTP-K140/141 选件提供基于硬件的时钟数据恢复 (CDR),支持的最大标称数据率高达 8 Gbps 或 16 Gbps,具体取决于所选软件选件。CDR 可以使用四个模拟输入通道中的任一通道。由于选件启用授权密钥,因此可以随时通过升级添加此功能。

高速串行码型触发
打开灯箱

基于硬件的 CDR 设置

选择预定义设置以用于多种标准,或使用自定义模式

多种触发事件

R&S®RTP 示波器的高速串行码型选件提供多种触发类型:

  • 单比特码型(最高 160 比特)
  • 双比特码型(双码型 OR 逻辑,最高 160 比特)
  • 复杂字(帧同步,最高 4 比特码型)
  • PRBS 错误(类型 7、9、11、15、16、17、20、23、29、31)
  • 8b/10b 符号
  • 128b/132b 符号
高速串行码型触发
打开灯箱

多种码型类型

RTP 示波器的串行码型触发功能支持多种码型类型,包括比特码型序列、PRBS 错误或 8b/10b 和 128b/132b 等线路编码。

支持多种线路编码

R&S®RTP-K140/141 选件支持 8b/10b 和 128b/132b 符号。触发特定字,并触发自定义字序列。这样能够快速、轻松地调试基于协议的高速接口,例如 USB 或 PCI Express。

高速串行码型触发
打开灯箱

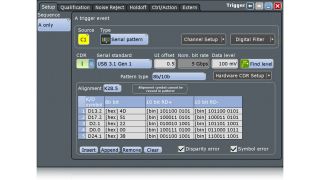

针对 USB 3.1 Gen1 的 8b/10b 符号触发

针对 USB 3.1 Gen1 的触发设置,支持 5 Gbps 数据率。对齐 K28.5 字和包含五个 8b/10b 数据字的触发条件。

信号完整性调试

借助高速串行码型触发,示波器能够生成数据眼图,并包含基于嵌入式时钟的时间信息。针对进一步的信号完整性分析,还提供眼图模板测试和直方图功能。

高速串行码型触发
打开灯箱

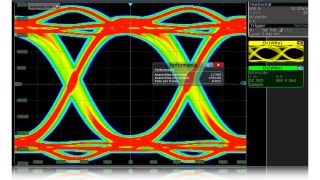

CDR 触发的眼图

使用基于硬件的 CDR 生成高速串行接口的眼图。

可用的型号


  • R&S®RTP-K140

    订单号码 1326.4554.02

    21 kbps 至 8 Gbps
    最高 160 比特
    双比特码型,最高 160 比特
    复杂字
    7,9,11,15,16,17,20,23,29,31
    8B/10B,128B/132B
  • R&S®RTP-K141

    订单号码 1326.4560.02

    21 kbps 至 16 Gbps
    最高 160 比特
    双比特码型,最高 160 比特
    复杂字
    7,9,11,15,16,17,20,23,29,31
    8B/10B,128B/132B
