R&S®MXO 4 示波器

新一代示波器，快速洞察与分析

R&S®MXO 4 示波器

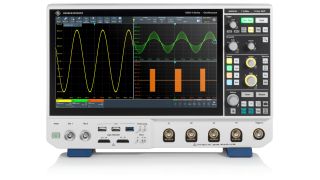

R&S®MXO4 示波器，前视图
R&S®MXO4 示波器，前视图
打开灯箱
R&S®MXO 4 示波器

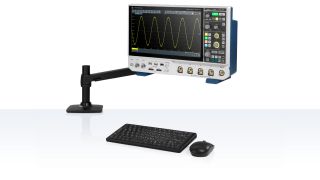

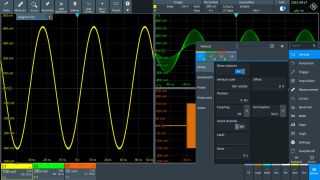

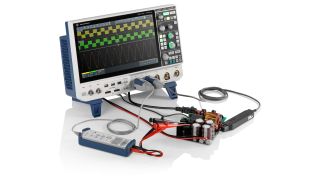

R&S®MXO4 示波器，应用图像
R&S®MXO4 示波器，应用图像
打开灯箱
R&S®MXO 4 示波器
R&S®MXO4 示波器，应用图像
R&S®MXO4 示波器，应用图像
打开灯箱

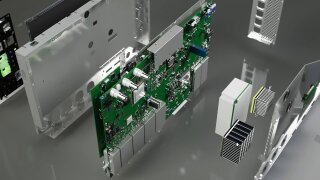

R&S®MXO 4 示波器
R&S®MXO4 示波器
打开灯箱

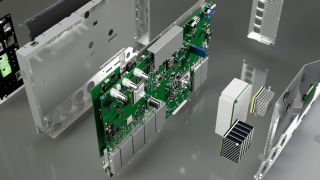

R&S®MXO 4 示波器
R&S®MXO 4 示波器
打开灯箱
R&S®MXO4 示波器，前视图 R&S®MXO4 示波器，应用图像 R&S®MXO4 示波器，应用图像 R&S®MXO4 示波器 R&S®MXO 4 示波器

主要特点

  • 带宽：200 MHz 至 1.5 GHz
  • 全球首款波形捕获率超过 450 万波形/秒的示波器，频谱采集率高达 45,000 FFT/s，最多支持 4 个同步频谱，在业内名列前茅
  • 业内出众的系统架构：18 位垂直分辨率/12 位 ADC，10 位 ENOB
  • 模拟、频谱和数学运算波形上的区域触发
  • 业内出色的标配存储：400 Mpts
配置和报价

新一代技术

R&S®MXO 4 系列新一代示波器性能出色，性价比高。仪器实现跨代工程技术突破，可以提供快速的洞察与分析。

示波器的实时波形捕获率高达 450 万波形/秒，在全球首屈一指，支持工程师查看更多使用其他仪器无法查看的偶发事件。R&S®MXO 4 系列具备 12 位 ADC，分辨率是传统 8 位示波器的 16 倍，并支持所有采样率，不会降低性能，让测量更加准确。仪器的所有四个通道标配 400 Mpoint 采集存储，交织模式下可选 800 Mpoint 存储，是同类仪器的 100 倍。

R&S®MXO 4 系列示波器优于其他同类示波器，具备出色的 13.3" 全高清电容式触摸屏和直观的用户界面，可让用户在 15 分钟内即可掌握操作方法。


快速链接

特性和优点

快速查找信号异常

... 提供优异的波形捕获率


  • > 450 万波形/秒
  • 高达 90% 的实时信号采集
  • 支持自动测量、FFT 或光标测量，提供快速性能
  • 快速可靠地检测偶发信号故障

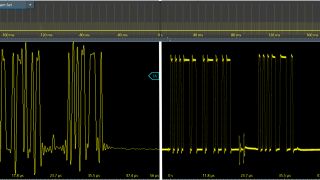

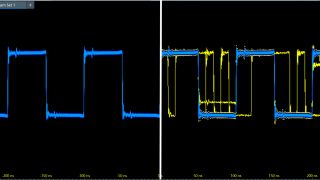

一般波形捕获率（左）与 450 万波形/秒（右）
打开灯箱

一般波形捕获率（左）与 450 万波形/秒（右）

一般波形捕获率（左）与 450 万波形/秒（右）
一般波形捕获率（左）与 450 万波形/秒（右）

准确查看信号

… 低测量噪声结合高垂直分辨率


  • 12 位 ADC 垂直分辨率，支持所有采样率，不会降低性能
  • 18 位架构，提供 HD 模式
  • 全带宽下垂直刻度低至 500 μV/div
  • 500 μV/div 时偏置范围可达 ±5 V，在业内首屈一指

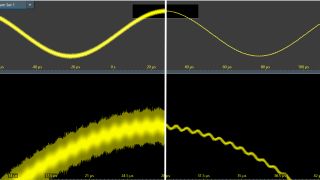

一般垂直分辨率（左）与 18 位分辨率 HD 模式（右）
打开灯箱

一般垂直分辨率（左）与 18 位分辨率 HD 模式（右）

一般垂直分辨率（左）与 18 位分辨率 HD 模式（右）
一般垂直分辨率（左）与 18 位分辨率 HD 模式（右）

采集时间更长

… 出色的标配存储深度


  • 每路通道的存储深度高达 400 Mpoints
  • 标配分段存储，提供 10 000 个分段
  • 标配历史模式，支持 10,000 次采集

长采集窗口中的低采样率（左）与高采样率（右）
打开灯箱

长采集窗口中的低采样率（左）与高采样率（右）

长采集窗口中的低采样率（左）与高采样率（右）
长采集窗口中的低采样率（左）与高采样率（右）

隔离事件

… 高精度数字触发


  • 业内出色的触发灵敏度：1/10 000 垂直分格
  • 触发抖动仅为 1 ps
  • 触发重置时间小于 21 ns
  • 可调数字触发滤波器和迟滞

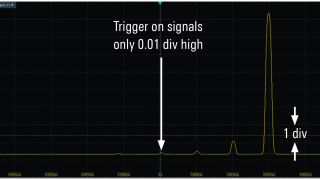

  • 模拟、频谱和数学运算波形上的区域触发功能

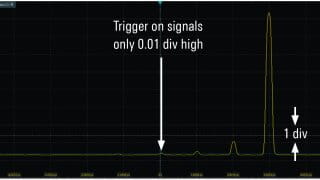

数字触发和 HD 模式实现灵活触发
打开灯箱

数字触发和 HD 模式实现灵活触发

数字触发和 HD 模式实现灵活触发
数字触发和 HD 模式实现灵活触发

出色的用户体验

… 优异的操控性


  • 快速访问重要工具和菜单设置
  • R&S®SmartGrid 可用于通过拖放设置波形布局
  • 增强触控灵敏度，便于更改重要的参数值
  • 使用新搜索菜单更加快速地查找特性和功能
  • 随时随地按需通过远程控制访问仪器

15 分钟即可学会操作，具备出色的触控和直观的导航
打开灯箱

15 分钟即可学会操作，具备出色的触控和直观的导航

15 分钟即可学会操作，具备出色的触控和直观的导航
15 分钟即可学会操作，具备出色的触控和直观的导航

强大的频谱分析

... 专用射频控制

  • 采集率高达 45,000 FFT/s，为测量提供深入的射频分析
  • 纯净的射频特性，提供优异的频谱性能
  • 专用射频控制，轻松进行设置和分析
  • 频谱和时域视图具有时间相关性，可独立控制
  • 提供自动测量，例如峰值表和最大/最小保持

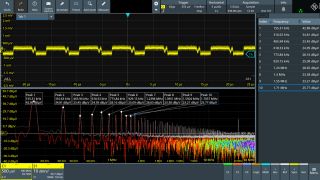

优异的射频测量功能
打开灯箱

优异的射频测量功能

优异的射频测量功能
优异的射频测量功能

可用型号

可用选项

相关视频

Zone Trigger on Math

01:25

Zone Trigger on Math

Use zone trigger to define trigger events graphically, also on your math signals. See how you can use this standard and unique capability on MXO oscilloscopes to trigger on specific events on your math signal.

11月 25, 2024

Zone trigger with R&S®MXO 4 Oscilloscope

01:36

Zone Trigger

Use zone trigger to define trigger events graphically. See how you can use this standard feature on MXO oscilloscopes easily and reliably.

11月 25, 2024

Zone Trigger on Spectrum

01:11

Zone Trigger on Spectrum

Use zone trigger to define trigger events graphically, also in the frequency domain. See how you can use this standard and unique capability on MXO oscilloscopes to trigger on certain events in the frequency domain.

11月 25, 2024

Trigger and Decode on I2C Bus

03:35

Trigger and Decode on I2C Bus

Quickly and reliably trigger and decode packets from your I2C bus using either the analog or digital channels as serial bus inputs. See how you can flexibly configure the trigger, change the bit rate or threshold voltage or display a decode table.

6月 27, 2024

Frequency Response Analysis

01:25

Frequency Response Analysis

This video shows how you can use the MXO Series K36 Frequency Response Analysis option to characterize the frequency response of your electric devices.

6月 27, 2024

Probe Positioners

01:11

Probe Positioners

This video shows you how you can better place and stabilize your probes using the the Rohde & Schwarz 2D positioner for passive probes and the 3D positioner for other probes.

6月 27, 2024

Trigger and Decode on SPI Bus

01:35

Trigger and Decode on SPI Bus

Quickly and reliably trigger and decode packets from your SPI bus using either the analog or digital channels as serial bus inputs. See how you can flexibly configure the trigger or display the decode table.

6月 27, 2024

Trigger and Decode on UART Bus

01:22

Trigger and Decode on UART Bus

Quickly and reliably trigger and decode packets from your RS232 or RS485 buses using either the analog or digital channels as serial bus inputs. See how you can flexibly configure the trigger, change the data format or display a decode table.

6月 27, 2024

查看更多
MXO4 团队
MXO4 团队
/

您准备好迎接新挑战了吗？快来加入罗德与施瓦茨的专家团队！

罗德与施瓦茨推出 MXO4，未来将持续开发新一代产品，不断应对各种挑战。
查看我们的招聘职位，一起将想法变成现实

显示所有 548 个职位招聘
