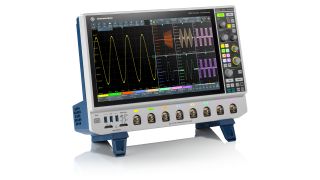

R&S®MXO 5 示波器
R&S®MXO 5 示波器，侧视图
R&S®MXO 5 示波器，侧视图
打开灯箱
R&S®MXO 5 示波器
R&S®MXO 5 示波器，低后视图
R&S®MXO 5 示波器，低后视图
打开灯箱
R&S®MXO 5 示波器
R&S®MXO 5 示波器，侧视图
R&S®MXO 5 示波器，侧视图
打开灯箱
R&S®MXO 5 示波器
R&S®MXO 5 示波器
打开灯箱
R&S®MXO 5 示波器，低前视图 R&S®MXO 5 示波器，低前视图 R&S®MXO 5 示波器，侧视图 R&S®MXO 5 示波器，低后视图 R&S®MXO 5 示波器，侧视图 R&S®MXO 5 示波器

主要特点

  • 带宽：350 MHz 至 2 GHz（四通道）；100 MHz 至 2 GHz（八通道）
  • 全球首屈一指的示波器，波形捕获率超过 450 万波形/秒，频谱采集率超过 45,000 FFT/s
  • 业内出众的系统架构：18 位垂直分辨率/12 位 ADC 和 10 位 ENOB
  • 模拟、频谱和数学运算区域触发
  • 业内出色的标配存储：500 Mpts
配置和报价

新一代示波器，以创新演进应对更多挑战

R&S®MXO 5 系列示波器实现技术性突破，能够更快了解和测试电子系统。
R&S®MXO 5 系列示波器提供优越的四通道和八通道型号，并采用先进技术，能够快速提供准确结果，是行业领先产品。示波器采用先进的定制化技术并具备突破性功能，能够洞察电路行为并提供重要见解。 R&S®MXO 5 系列配备出色的 15.6" 全高清电容式触摸屏，操作噪声非常低，最大限度地提高了性能并减少了功耗。

快速链接

特性和优点

更加快速地洞察全局

… 快速更新的洞察与分析

  • 全球首款波形捕获率超过 450 万波形/秒的八通道示波器
  • 全球首款多路通道的总波形捕获率高达 1800 万波形/秒的八通道示波器
  • 高达 90% 的实时信号采集
  • 同时进行 4 路 FFT 频谱分析

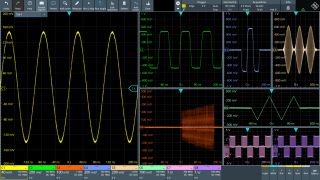

使用八路通道查看所有细节
打开灯箱

使用八路通道查看所有细节

使用八路通道查看所有细节
使用八路通道查看所有细节

准确查看信号

… 八路通道提供低噪声和高垂直分辨率


  • 12 位 ADC 垂直分辨率，支持所有采样率，不会降低性能
  • 18 位架构，提供 HD 模式
  •  1 mV/div 和 2 GHz 全带宽下噪声低至 130 μV
  • 全带宽下垂直刻度低至 500 uV/div，偏置范围可达 5 V

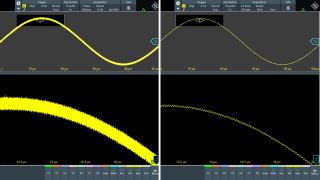

一般垂直分辨率（左）与 18 位 HD 模式（右）
打开灯箱

一般垂直分辨率（左）与 18 位 HD 模式（右）

一般垂直分辨率（左）与 18 位 HD 模式（右）
一般垂直分辨率（左）与 18 位 HD 模式（右）

采集时间更长

… 出色的标配存储深度


  • 每路通道的存储深度高达 500 Mpts
  • 标配分段存储，提供 10,000 个分段
  • 标配历史模式，支持 10,000 次采集
  • 每通道内存可选择扩展至 1 G pts，提供一百万个分段/存储捕获

全内存下总采集时间长达 1 秒
打开灯箱

全内存下总采集时间长达 1 秒

全内存下总采集时间长达 1 秒
全内存下总采集时间长达 1 秒

对每个细节进行触发

… 高精度数字触发

  • 全球首款触发灵敏度高达 0.0001 垂直分格的八通道示波器
  • 全球首款可调触发迟滞的八通道示波器
  • 触发重置时间小于 21 ns
  • 模拟、频谱和数学运算区域触发
  • 触发抖动仅为 1 ps

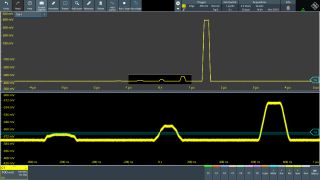

灵活的 HD 数字触发
打开灯箱

灵活的 HD 数字触发

灵活的 HD 数字触发
灵活的 HD 数字触发

多频谱更新

... 提供更多强大功能

  • 全球首款具有 4 个频谱和独立时频域控制的八通道示波器
  • 全球首款速率高达 45,000 FFT/s 的八通道示波器
  • 可独立控制的射频和时域视图
  • R&S®MXO 5 系列标配业内出众的频谱功能和区域触发

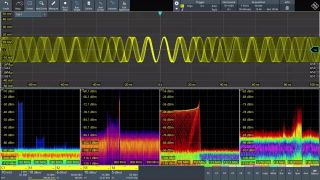

同步提供多达 4 个频谱
打开灯箱

同步提供多达 4 个频谱

同步提供多达 4 个频谱
同步提供多达 4 个频谱

可用型号

可用选项

Related videos

Zone Trigger on Math

01:25

Zone Trigger on Math

Use zone trigger to define trigger events graphically, also on your math signals. See how you can use this standard and unique capability on MXO oscilloscopes to trigger on specific events on your math signal.

11月 25, 2024

Zone trigger with R&S®MXO 4 Oscilloscope

01:36

Zone Trigger

Use zone trigger to define trigger events graphically. See how you can use this standard feature on MXO oscilloscopes easily and reliably.

11月 25, 2024

Zone Trigger on Spectrum

01:11

Zone Trigger on Spectrum

Use zone trigger to define trigger events graphically, also in the frequency domain. See how you can use this standard and unique capability on MXO oscilloscopes to trigger on certain events in the frequency domain.

11月 25, 2024

Trigger and Decode on I2C Bus

03:35

Trigger and Decode on I2C Bus

Quickly and reliably trigger and decode packets from your I2C bus using either the analog or digital channels as serial bus inputs. See how you can flexibly configure the trigger, change the bit rate or threshold voltage or display a decode table.

6月 27, 2024

Frequency Response Analysis

01:25

Frequency Response Analysis

This video shows how you can use the MXO Series K36 Frequency Response Analysis option to characterize the frequency response of your electric devices.

6月 27, 2024

Probe Positioners

01:11

Probe Positioners

This video shows you how you can better place and stabilize your probes using the the Rohde & Schwarz 2D positioner for passive probes and the 3D positioner for other probes.

6月 27, 2024

Trigger and Decode on SPI Bus

01:35

Trigger and Decode on SPI Bus

Quickly and reliably trigger and decode packets from your SPI bus using either the analog or digital channels as serial bus inputs. See how you can flexibly configure the trigger or display the decode table.

6月 27, 2024

Trigger and Decode on UART Bus

01:22

Trigger and Decode on UART Bus

Quickly and reliably trigger and decode packets from your RS232 or RS485 buses using either the analog or digital channels as serial bus inputs. See how you can flexibly configure the trigger, change the data format or display a decode table.
