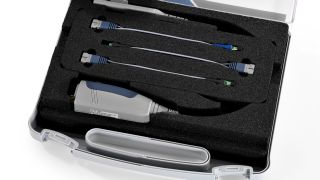

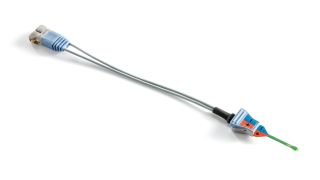

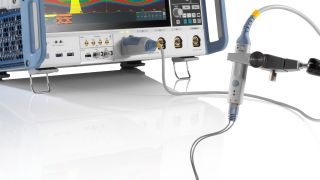

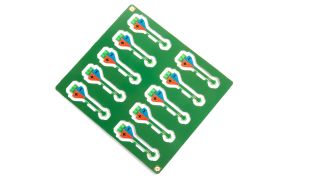

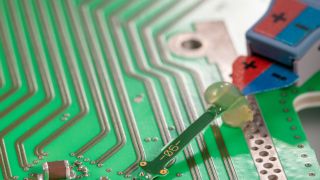

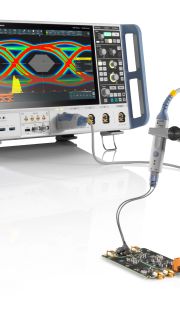

适用于罗德与施瓦茨示波器的模块化探头 R&S®RTP 示波器上的模块化探头 装在硬盒中的模块化探头,最多可存储三个探头前端 适用于示波器的模块化探头系统,低前视图 FlexPCB,带 10 个焊接式前端(作为备件) RT-ZMA14 焊接式前端

主要特点

  • 应对高速探测挑战
  • 灵活且可配置的连接选项
  • 多模功能方便切换不同的测量模式
  • 集成式高精度电压表
  • 集成式微控按钮,可方便仪器控制

简介

R&S®RT-ZM 模块化探头系统技术先进且易于操作,能够满足当今的探测需求。各种探测解决方案具有带宽高、动态范围大和容性负载低的特点。R&S®RT-ZM 探头系统包含多种探头前端模块,可在各种测量任务和条件下使用。这些探头前端模块可以连接至带宽范围介于 1.5 GHz 至 16 GHz 的放大器模块。

特性和优点

灵活且可配置

R&S®RT-ZM 模块化探头系统具有卓越性能,以及灵活且可配置的连接选项。R&S®RT-ZM 探头系统包含多种探头前端模块,可在各种测量任务和条件下使用。

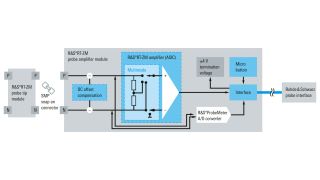

模块化探头系统框图
打开灯箱

模块化探头系统框图

轻松切换测量模式

用户可以使用多模功能切换单端、差模和共模测量,无需重新连接或重新焊接探头前端。罗德与施瓦茨设计的高速 R&S®RT-ZM 放大器 ASIC 上已经集成了这项功能。

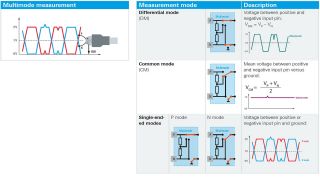

在多模条件下测量差分信号
打开灯箱

在多模条件下测量差分信号

偏置补偿实现最佳分辨率

R&S®RT-ZM 模块化探头系统具有 ±16 V 的独特偏置补偿范围。已测信号的直流分量可以在差分 R&S®RT-ZM 放大器 ASIC 的上行探头前端上得到补偿。用户可以将工作电压范围扩展到超出探头放大器模块的动态范围,并在示波器上以最高分辨率显示所关注的信号成分。该功能在多模操作中也可使用。

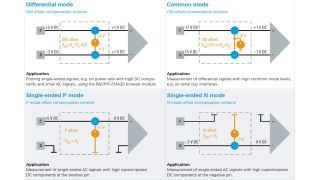

针对多模测量的直流偏置补偿
打开灯箱

针对多模测量的直流偏置补偿

高精度直流电压测量

独特的集成式 R&S®ProbeMeter 可以独立于示波器操作,并且能够测量信号的直流分量,精度高达 0.05%。它在示波器采集波形的同时连续进行直流测量。R&S®RT-ZM 探头放大器模块内的专用模数转换器可以将测量的直流电压值即时转换为数字信号,进而实现高精度测量。

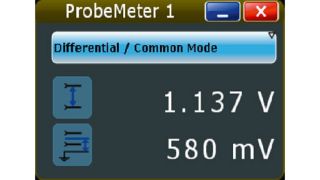

探头电压表读数
打开灯箱

探头电压表读数

在探头前端控制仪器

R&S®RT-ZM 探头放大器模块集成一个微控按钮,让用户更方便地使用示波器并专注于测量任务。用户可在罗德与施瓦茨示波器上对此按钮进行配置以执行不同的功能,比如运行/停止、自动设置、保存波形、查找触发电平或创建自动测试报告。此外,也可以配置 R&S®RT-ZM 模块化探头系统的多模切换。

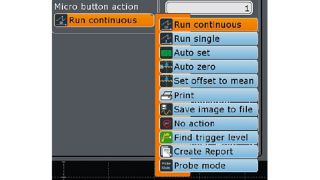

可选微控按钮操作列表
打开灯箱

可选微控按钮操作列表

可用型号

可用选项

请求信息
