R&S®MXO 5C 示波器

设计紧凑的新一代示波器

R&S®MXO 5C 示波器

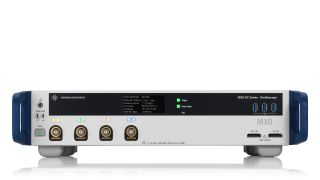

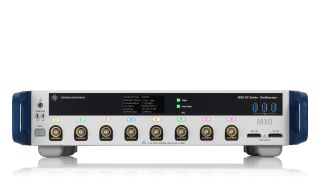

R&S®MXO 5C 示波器，低前视图
R&S®MXO 5C 示波器，低前视图
打开灯箱
R&S®MXO 5C 示波器
R&S®MXO 5C 示波器，低前视图
R&S®MXO 5C 示波器，低前视图
打开灯箱
R&S®MXO 5C 示波器
R&S®MXO 5C 示波器，低后视图
R&S®MXO 5C 示波器，低后视图
打开灯箱
R&S®MXO 5C 示波器
R&S®MXO 5C 示波器，主视图
R&S®MXO 5C 示波器，主视图
打开灯箱
R&S®MXO 5C 示波器

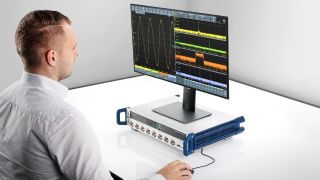

R&S®MXO 5C 示波器，应用图像
R&S®MXO 5C 示波器，应用图像
打开灯箱
R&S®MXO 5C 示波器
R&S®MXO 5C 示波器，应用图像
R&S®MXO 5C 示波器，应用图像
打开灯箱
R&S®MXO 5C 示波器，低前视图 R&S®MXO 5C 示波器，低前视图 R&S®MXO 5C 示波器，低后视图 R&S®MXO 5C 示波器，主视图 R&S®MXO 5C 示波器，应用图像 R&S®MXO 5C 示波器，应用图像

主要特点

  • 带宽：350 MHz 至 2 GHz（四通道）；100 MHz 至 2 GHz（八通道）
  • 示波器高度为 2U，非常适合机架应用
  • 集成式电子墨水显示屏显示仪器的 IP 地址和状态等关键信息，保证快速进行设置
  • 支持模拟、频谱和数学运算波形上的区域触发
  • 性能规格与 MXO5 系列示波器一样优质：
    - 全球出色的波形捕获率：450 万波形/秒
    - 业内出众的系统架构：12 位 ADC，18 位 HD 模式，10 位 ENOB
    - 业内出色的标配存储：500 Mpoints
    - 业内出色的频谱采集速率为 45,000 FFT/秒，最多可采集 4 个频谱
配置和报价

设计紧凑的新一代示波器

R&S®MXO 5C 系列和 R&S®MXO 5 系列示波器采用相同的模块设计，虽体型小巧，但性能规格同样出色。R&S®MXO 5C 提供四通道和八通道型号，带宽范围为 100 MHz 至 2 GHz，支持准确的时域和频域测量。 R&S®MXO 5C 系列的垂直高度为 2U，满足高通道密度的要求。示波器可以和其他测试设备一起安装在机架中，也可以用于工作台应用以节省垂直空间。低功率的电子墨水显示屏显示连接状态等关键信息，如纸张一样护眼。示波器可以通过 LAN 使用集成式 Web 浏览器和虚拟前面板远程控制。

快速链接

特性和优点

性能规格与 MXO 5 系列示波器一样出色

… 结构紧凑


  • 全球首款波形捕获率超过 450 万波形/秒的八通道示波器，实时信号采集率高达 90%
  • 12 位 ADC/18 位 HD 分辨率实现出色精度
  • 深存储采集，每通道采集 5 亿数据点
  • 高级数字触发提供出色的灵敏度

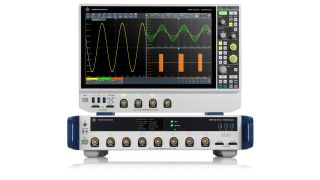

R&S®MXO 5C 系列：紧凑型示波器，性能规格与 R&S®MXO 5 系列一样出色
打开灯箱

R&S®MXO 5C 系列：紧凑型示波器，性能规格与 R&S®MXO 5 系列一样出色

R&S®MXO 5C 系列：紧凑型示波器，性能规格与 R&S®MXO 5 系列一样出色
R&S®MXO 5C 系列：紧凑型示波器，性能规格与 R&S®MXO 5 系列一样出色

机架安装或堆放

… 小巧紧凑


  • 2U 机架安装高度，同时提供四路或八路通道。
  • 非常适合需要垂直空间的工作台应用
  • 与另一台 MXO 5 或 MXO 5C 系列示波器堆放在一起，提供多达 16 路通道。

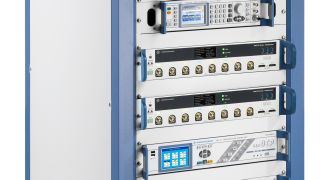

示波器高度为 2U，非常适合安装在机架中
打开灯箱

示波器高度为 2U，非常适合安装在机架中

示波器高度为 2U，非常适合安装在机架中
示波器高度为 2U，非常适合安装在机架中

在大显示屏上查看信号

…也可自选触摸屏


  • 连接一个兼容的全高清显示器，扩大示波器的显示区域
  • 通过标准 HDMI 或 DisplayPort 连接显示器。
  • 选择具有 USB 触控功能的显示器，使用起来与 MXO 5 系列示波器的集成式屏幕一样简单

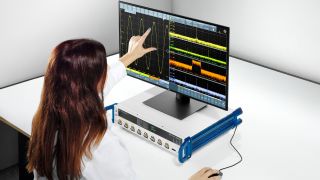

支持连接触摸屏
打开灯箱

支持连接触摸屏

支持连接触摸屏
支持连接触摸屏

轻松远程访问示波器

… 可在任何地方使用


  • 通过 LAN 连接到集成式 Web 浏览器和虚拟前面板
  • 虚拟前面板上显示虚拟的 MXO5 仪表盘/按钮。
  • SCPI 命令、波形和 saveset 文件与 MXO 4 和 MXO 5 系列示波器兼容

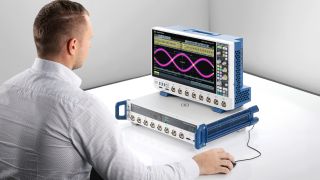

可在任何地方访问示波器
打开灯箱

可在任何地方访问示波器

可在任何地方访问示波器
可在任何地方访问示波器

可用型号

可用选项

Related videos

Zone Trigger on Math

01:25

Zone Trigger on Math

Use zone trigger to define trigger events graphically, also on your math signals. See how you can use this standard and unique capability on MXO oscilloscopes to trigger on specific events on your math signal.

11月 25, 2024

Zone trigger with R&S®MXO 4 Oscilloscope

01:36

Zone Trigger

Use zone trigger to define trigger events graphically. See how you can use this standard feature on MXO oscilloscopes easily and reliably.

11月 25, 2024

Zone Trigger on Spectrum

01:11

Zone Trigger on Spectrum

Use zone trigger to define trigger events graphically, also in the frequency domain. See how you can use this standard and unique capability on MXO oscilloscopes to trigger on certain events in the frequency domain.

11月 25, 2024

Trigger and Decode on I2C Bus

03:35

Trigger and Decode on I2C Bus

Quickly and reliably trigger and decode packets from your I2C bus using either the analog or digital channels as serial bus inputs. See how you can flexibly configure the trigger, change the bit rate or threshold voltage or display a decode table.

6月 27, 2024

Frequency Response Analysis

01:25

Frequency Response Analysis

This video shows how you can use the MXO Series K36 Frequency Response Analysis option to characterize the frequency response of your electric devices.

6月 27, 2024

Probe Positioners

01:11

Probe Positioners

This video shows you how you can better place and stabilize your probes using the the Rohde & Schwarz 2D positioner for passive probes and the 3D positioner for other probes.

6月 27, 2024

Trigger and Decode on SPI Bus

01:35

Trigger and Decode on SPI Bus

Quickly and reliably trigger and decode packets from your SPI bus using either the analog or digital channels as serial bus inputs. See how you can flexibly configure the trigger or display the decode table.

6月 27, 2024

Trigger and Decode on UART Bus

01:22

Trigger and Decode on UART Bus

Quickly and reliably trigger and decode packets from your RS232 or RS485 buses using either the analog or digital channels as serial bus inputs. See how you can flexibly configure the trigger, change the data format or display a decode table.

6月 27, 2024
