Isolated probing system 适用于示波器

新一代突破性探头解决方案

Isolated probing system 适用于示波器
打开灯箱
Isolated probing system 适用于示波器
打开灯箱
Isolated probing system 适用于示波器
打开灯箱
Isolated probing system 适用于示波器
打开灯箱
Isolated probing system 适用于示波器
打开灯箱
Isolated probing system 适用于示波器
打开灯箱
Isolated probing system 适用于示波器
打开灯箱
Isolated probing system 适用于示波器
打开灯箱
Isolated probing system 适用于示波器
打开灯箱

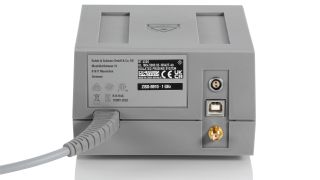

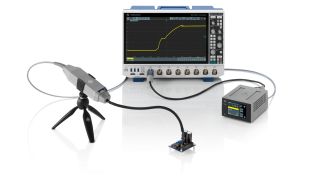

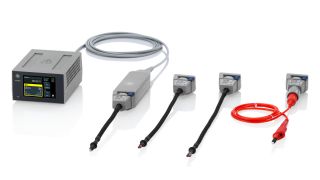

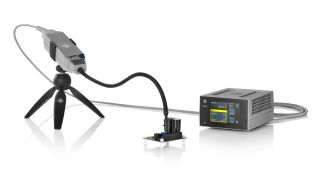

隔离探测系统的前端电缆易于成型。 隔离探头系统适用于示波器 支持不同的探头前端,包括 MMCX、插孔式、宽插孔式和绝缘型点测式前端。 Isolated probing system For oscilloscopes, Application Image 接收机背面板接口可用于 SMA、电源和 USB 控制。 Isolated probing system For oscilloscopes Isolated probing system For oscilloscopes Isolated probing system For oscilloscopes Isolated probing system For oscilloscopes

主要特点

  • 100/200/350/500 MHz 和 1 GHz 带宽,可升级
  • 1 GHz 带宽时 CMRR > 90 dB
  • ± 3000 V 差分输入范围和偏移
  • ± 60 kV 共模范围
  • 双连接,支持罗德与施瓦茨探头接口和 SMA 接口

新一代突破性解决方案

光隔离

R&S®RT-ZISO 隔离探测系统能够应对高压和快速开关环境中的测量挑战。光纤供电架构使被测设备 (DUT) 电气隔离,带宽高达 1 GHz 时也能尽量保证最高的共模抑制比 (CMRR)。整个系统会补偿热漂移和增益误差,确保一流的信号保真度。

特性和优点

应对快速探测共模信号的挑战

R&S®RT-ZISO 隔离探测系统能够通过光隔离抑制快速共模信号的干扰,1 GHz 带宽时 CMRR 大于 90 dB。这有助于对互补开关电路(尤其是宽禁带设备)进行高压侧栅极测量。

  • 1 GHz:> 90 dB
  • 500 MHz:> 100 dB
  • 100 MHz:> 115 dB
  • 1 MHz:> 145 dB

打开灯箱

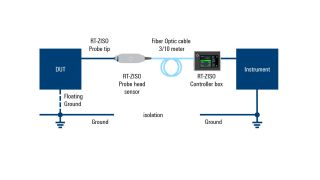

隔离能够限制在系统中形成共模噪声环路。

探头前端非常重要

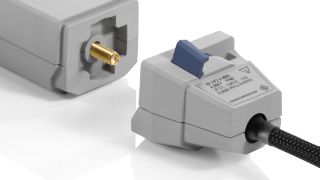

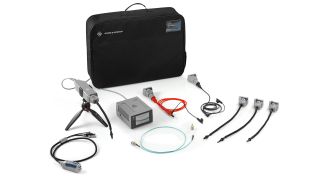

R&S®RT-ZISO 提供多种探头前端,其中 MMCX 探头前端对于保证出色的 CMRR 性能最为重要。探测系统还支持插孔式和宽插孔式等具有不同衰减比的各类接口。探头前端电缆较长且易于成型,能够轻松接入探测点,而且对探测点的机械应力也非常低。

打开灯箱

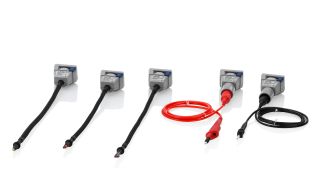

探头前端易于成型,支持不同的接口和点测式探头。

使用罗德与施瓦茨示波器轻松进行设置

通过罗德与施瓦茨探头接口连接 R&S®RT-ZISO 和示波器,提供流畅的使用体验。示波器能够检测到探头前端并设置相应信息。使用示波器可以轻松配置偏移和范围控制。用户还可以在测量中轻松使用罗德与施瓦茨示波器的所有功能和特性,例如出色的波形捕获率和快速响应的 FFT 功能。

打开灯箱

无缝连接到罗德与施瓦茨示波器,可以轻松控制探头

投资保护

R&S®RT-ZISO 隔离探头系统可以连接到任何带有 BNC 或 SMA 接口的示波器。用户可以根据性能需求选购仪器。R&S®RT-ZISO 可以根据未来需求升级带宽。

打开灯箱

R&S®RT-ZISO 可以根据未来需求升级带宽

保证测量和操作安全

R&S®RT-ZISO 达到 CAT III 1000V 安全等级。探头系统的材料和机械结构符合电气测量用手持式探头组件的 IEC/EN 61010-31 标准。

  • CAT III 1000V 安全等级
  • 探头前端可安全连接
  • 符合 1 类激光产品的安全标准

打开灯箱

安全连接确保安全更换探头前端

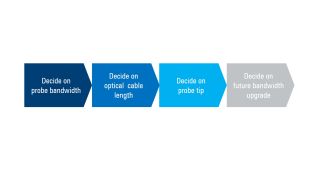

可用型号

可用选项

Isolated probing system for oscilloscopes - Mediacenter

Introducing the new probe system

Introducing the new probe system

Isolated probing system for accurate measurements in high noise power electronics environments.

Measuring accurately in wide bandgap application

Measuring accurately in wide bandgap application

Accurately measure fast switching signals in noisy environments with RT-ZISO, ideal for WBG testing.

Safe to measure and easy to operate

Safe to measure and easy to operate

Learn about RT-ZISO safety features and effortless setup to transform your testing workflow.

Probe tips considerations

Probe tip considerations

MMCX, Square Pins, or Browser Tip? Compare the pros and cons. Choose the best for your testing needs.
