R&S®Antenna tuning units

适合高频通信的天线调谐器

R&S®Antenna tuning units
打开灯箱
R&S®Antenna tuning units
打开灯箱
R&S®Antenna tuning units
打开灯箱

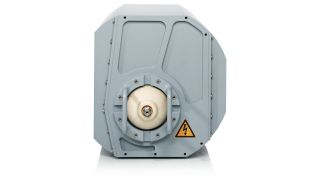

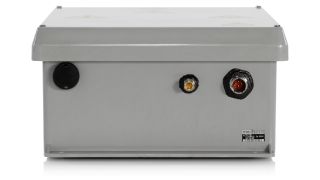

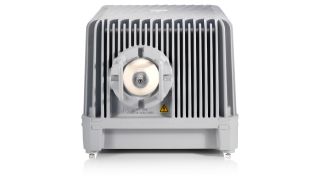

R&S® 天线调谐器,高前视图 R&S® 天线调谐器,前视图 R&S® 天线调谐器,前视图

主要特点

  • 支持高频宽带
  • 跳频功能
  • 无噪调谐功能
  • EMC 和过电压保护
  • 加固型设计,无需维护

简介

罗德与施瓦茨的所有天线调谐器 (ATU) 均支持 1.5 MHz 至 30 MHz 的工作频率范围,并可在接收和发射模式下将天线阻抗调谐至 50 Ω。罗德与施瓦茨 ATU 还可在接收模式下提供预选功能。ATU 还支持高频宽带和 ALE-4G(MIL-STD-188-110D、MIL-STD-188-144D)。

特性和优点

跳频功能

R&S®SECOM-H EPM (ECCM)

R&S®SECOM-H 与 STANAG 4444 类似,是罗德与施瓦茨专有的高频跳频无线电通信波形。此类波形专用于特定数量的跳频设置频率因有意干扰(例如人为干扰)或意外干扰而受阻的环境,以及具有严重的多普勒扩展和/或多径延迟的环境。

无噪调谐功能

罗德与施瓦茨天线调谐器 (ATU) 可在 1.5 MHz 至 30 MHz 的完整频率范围内进行无噪调谐。由于罗德与施瓦茨 ATU 能够非常快速地设置频率且没有射频功率发射,因此可提供低截获率 (LPI) 的优势。在使用此功能之前,罗德与施瓦茨 ATU 必须连接至天线以“了解”天线的特性。用户可以在高频频段内自定义频率范围以了解天线特性。

EMC 和过电压保护

所有电路板均配备 EMC 滤波器。罗德与施瓦茨 ATU 输出具有防雷保护,可在天线遭遇雷击时提供过电压保护。所有天线调谐器均经过测试,可承受 10 kV/10 kA 的电弧。

加固型设计,无需维护

罗德与施瓦茨天线调谐器采用坚固设计,可确保全天候操作。

内置测试设备

内置测试设备 (BITE)

罗德与施瓦茨 ATU 持续监控整个系统,以便在控制单元上显示与正常操作状态的偏差。

可用型號

可用型號
型号
频率范围(发射)
射频输出功率

R&S®FK4115M

频率范围(发射)
1.5 MHz - 30 MHz
射频输出功率
150 W (PEP)

R&S®FK4150U

频率范围(发射)
1.5 MHz - 30 MHz
射频输出功率
500 W

R&S®FK4190M

频率范围(发射)
1.5 MHz - 30 MHz
射频输出功率
1000 W
