10/100Mbit/1Gbit 以太网软件

一致性测试

10/100Mbit/1Gbit 以太网软件
打开灯箱
10/100Mbit/1Gbit 以太网软件
打开灯箱

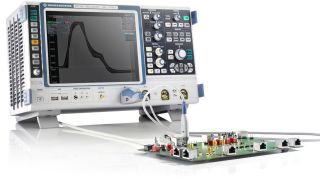

10/100Mbit/1Gbit Ethernet software, Software 10/100Mbit/1Gbit Ethernet software, Application Image

主要特点

  • 完整的测试解决方案
  • 全自动化或手动测试
  • 提供测试步骤指南,易于使用
  • 强大的报告功能
  • 测试解决方案包括示波器、矢量网络分析仪、波形发生器和测试夹具

示波器软件

R&S®RTO-K22 选件为 10/100/1000BASE-T 以太网接口提供了符合 IEEE 和 ANSI 测试规范的自动化测试解决方案。测试向导通过图示分步说明提供指导。用户可以将结果记录在可配置的测试报告中。完整的以太网一致性测试解决方案包括 R&S®RT-ZF2 测试夹具和 R&S®RTO-B6 波形发生器。

特性和优点

完整的测试解决方案

完整的测试解决方案涵盖 IEEE 和 ANSI 测试规范针对 10BASE-T、100BASE-Tx 及 1000BASE-T 以太网的所有相关测试用例。测试夹具可保证通过差分探头执行准确的信号探测,并让测试解决方案的适用范围更加完整。

打开灯箱

全自动化或手动测试

R&S®ScopeSuite 提供含步骤指南的测试向导。所用测试为全自动化测试。此外,可以执行单个测试以进行高效调试。限值编辑器可用于分别调整符合不同标准的测试限值。

打开灯箱

提供测试步骤图示指南,确保易于使用

以太网一致性测试采用全面的测试指南。借助详细的图示说明,用户可以轻松将示波器和探头正确连接到测试夹具和被测设备。这可以确保使用更加简单,并且减少可能出现的设置错误。

强大的报告功能

测试结果详尽记录在 R&S®ScopeSuite 创建的报告中。测试报告可以包含数字结果数据或示波器屏幕截图,具体取决于用户的偏好设置。可用的输出格式包括 PDF、DOC 和 HTML。

详细报告包括设置参数、测量结果和屏幕截图
打开灯箱

详细报告包括设置参数、测量结果和屏幕截图

测试解决方案包括示波器、矢量网络分析仪、波形发生器和测试夹具

一致性测试设置包括需要使用波形发生器和网络分析仪的测试用例。罗德与施瓦茨提供包括 R&S®RTO-B6 波形发生器和 R&S®ZND 矢量网络分析仪的完整解决方案。R&S®ScopeSuite 一致性测试软件全面支持所有仪器,以提供全集成式一致性测试解决方案。

打开灯箱

具有高分辨率模式,以提高测试结果清晰度

借助可选的高分辨率模式,示波器的垂直分辨率可增加至最高 16 位。一致性测试结果将更加准确。因此,测试结果将更加清晰。

打开灯箱

可用型號

可用型號
型号
最小带宽
描述
基本单元

R&S®RTO-K22

订单号码 1329.7460.02

最小带宽
600 MHz
描述
按照 IEEE 测试规范针对 10/100/1000BASE-T/节能以太网接口的自动化一致性测试解决方案
基本单元

R&S®RTP-K22

订单号码 1337.8691.02

最小带宽
600 MHz
描述
按照 IEEE 测试规范针对 10/100/1000BASE-T 以太网接口的自动化一致性测试解决方案
基本单元
规格
推荐的配置 R&S®RTP-K22; - RTP044
- 1 x RT-ZD10
- RT-ZF2 以太网测试夹具
R&S®RTO-K22; - RTO2004
- 1 x RT-ZD10
- RT-ZF2 以太网测试夹具

可用选项

软件选件
产品
描述

订单号码 1329.7419.02

描述

高分辨率模式。
