TDR/TDT 分析示波器软件,软件 TDR/TDT 分析示波器软件,屏幕截图 TDR/TDT 分析示波器软件,屏幕截图 使用罗德与施瓦茨示波器进行 TDR/TDT 分析

主要特点

  • 支持单端和差分 TDR/TDT 分析
  • 使用内部 R&S®RTO/RTP-B7 16 GHz 差分脉冲源
  • 向导提供校准和测量指南
  • 多域图标

示波器软件

R&S®RTO/RTP-K130 选件、R&S®RTO/RTP-B7 脉冲源和 R&S®RTO 或 RTP 示波器的模拟输入通道相结合,形成时域反射 (TDR) 和时域透射 (TDT) 分析系统,有助于表征和调试信号路径,包括印刷电路板迹线、电缆和连接器。选件支持单端和差分测量(仅适用于 RTP)。

特性和优点

单端和差分 TDR/TDT

R&S®RTO/RTP-B7 脉冲源提供高度对称的差分脉冲信号,并具备 22 ps 陡峭上升时间。这样可以使用 R&S®RTP 执行单端或差分时域反射 (TDR) 和/或时域透射 (TDT) 分析。R&S®RTO 仅支持单端 TDR/TDT 测量。

单端 TDR
打开灯箱

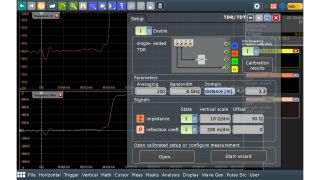

单端 TDR

用于配置单端时域反射计 (TDR) 测量的设置对话框。显示相对于距离的阻抗和反射系数。

提供向导支持,方便完成校准和测量

操作指导

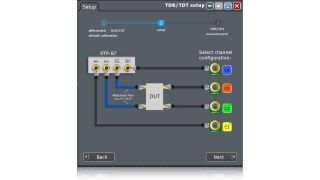

TDR/TDT 向导指导用户根据选定的测量类型(TDR、TDR/TDT、TDT)和配置(单端或差分)校准测试装置。接下来,向导将通过说明协助用户为测量设置测试装置和参数。

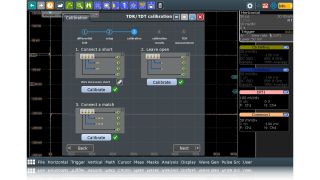

用于校准 TDR/TDT 装置的向导
打开灯箱

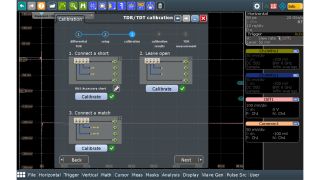

用于校准 TDR/TDT 装置的向导

向导指导用户校准 TDR/TDT 装置。

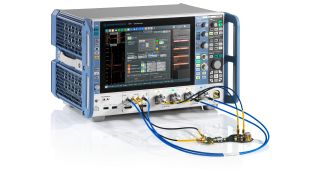

完整解决方案

全面集成

R&S®RTP-K130 TDT/TDR 分析选件和 R&S®RTO/RTP-B7 脉冲选件全面集成到示波器的图形用户界面。脉冲选件包含所有校准和测量附件,例如短路校准件、50 Ω 终端或电缆。差分测量需要使用低损耗、相位匹配电缆组件 R&S®RT-Z17。

打开灯箱

可用型號

可用型號
型号
最大分析带宽
最大差分 TDR+TDT 分析带宽
脉冲源
支持的示波器型号
基本单元

R&S®RTP-K130

订单号码 1326.3093.02

最大分析带宽
16 GHz
最大差分 TDR+TDT 分析带宽
8 GHz
脉冲源
R&S®RTP-B7
支持的示波器型号
RTP044, RTP064, RTP084, RTP134, RTP164
基本单元

R&S®RTO-K130

订单号码 1326.3087.02

最大分析带宽
6 GHz
最大差分 TDR+TDT 分析带宽
4 GHz
脉冲源
R&S®RTO-B7
支持的示波器型号
RTO2024, RTO2034, RTO2044, RTO2062
基本单元

R&S®RTO6-K130

订单号码 1801.6893.02

最大分析带宽
6 GHz
最大差分 TDR+TDT 分析带宽
4 GHz
脉冲源
  R&S®RTO6-B7
支持的示波器型号
R&S®RTO64 with R&S®RTO6-B92/93/94/96
基本单元

可用选项

硬件选件
产品
描述
R&S®RTP-B7

订单号码 1333.2001.02

描述

适用于 R&S®RTP 高性能示波器的 16 GHz 差分脉冲源

R&S®RTO-B7

订单号码 1333.2030.02

描述

适用于 R&S®RTO2000 示波器的 16 GHz 差分脉冲源

通用附件
产品
描述
R&S®RT-ZA16

订单号码 1320.7074.02

描述

精密 BNC 转 SMA 适配器

R&S®RT-ZA17

订单号码 1337.8991.02

描述

适用于 TDR 测量的 SMA 匹配电缆组件

微波探头
产品
描述
R&S®DPSS201503

订单号码 1801.4649.02

描述

差分微波探头,20 GHz,0.3 mm 间距

R&S®DPSS201504

订单号码 1801.4655.02

描述

差分微波探头,20 GHz,0.4 mm 间距

R&S®DPSS201505

订单号码 1801.4661.02

描述

差分微波探头,20 GHz,0.5 mm 间距

R&S®DPSS201508

订单号码 1801.4678.02

描述

差分微波探头,20 GHz,0.8 mm 间距

R&S®DPSS201510

订单号码 1801.4684.02

描述

差分微波探头,20 GHz,1.0 mm 间距

R&S®SPGR201502

订单号码 1801.4703.02

描述

单端微波探头,20 GHz,0.25 mm 间距

R&S®DPSS201512

订单号码 1801.4690.02

描述

差分微波探头,20 GHz,1.2 mm 间距

R&S®SPGR201504

订单号码 1801.4710.02

描述

单端微波探头,20 GHz,0.4 mm 间距

R&S®SPGR201505

订单号码 1801.4726.02

描述

单端微波探头,20 GHz,0.5 mm 间距

R&S®SPGR181508

订单号码 1801.4732.02

描述

单端微波探头,18 GHz,0.8 mm 间距

R&S®SPGR181510

订单号码 1801.4749.02

描述

单端微波探头,18 GHz,1.0 mm 间距

R&S®SPGR161512

订单号码 1801.4755.02

描述

单端微波探头,16 GHz,1.2 mm 间距

R&S®SPGR161514

订单号码 1801.4761.02

描述

单端微波探头,16 GHz,1.4 mm 间距

R&S®SPGR161516

订单号码 1801.4778.02

描述

单端微波探头,16 GHz,1.6 mm 间距

R&S®DP-HAND01

订单号码 1801.4826.02

描述

用于手动探测的 D 型探头手柄
