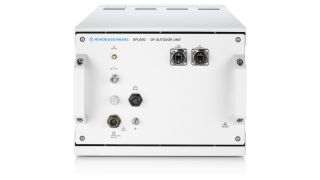

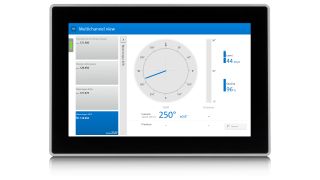

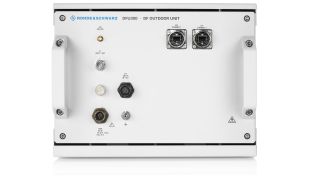

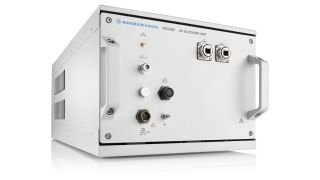

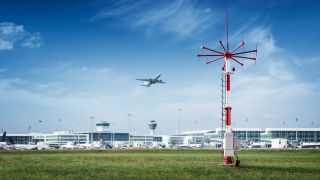

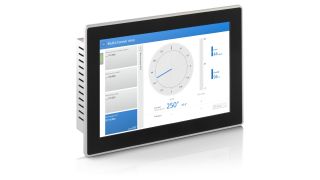

R&S®DF-ATC-S 测向系统,前视图R&S®DF-ATC-S 测向系统,前视图R&S®DF-ATC-S 测向系统,主视图R&S®DF-ATC-S 测向系统,前视图R&S®DF-ATC-S 测向系统,主视图R&S®DF-ATC-S 测向系统,应用图像

主要特点

  • 提升安全性和态势感知
  • 快速可靠地确定正在呼叫机场的飞机
  • 最多可并行处理 32 个频率通道
  • 标准接口可用于雷达显示器集成

R&S®DF-ATC-S 空中交通管制测向系统

快速可靠地确定正在呼叫机场的飞机

新型 R&S®DF-ATC-S 空中交通管制 (ATC) 测向系统可为民航和军用机场提供准确可靠的测向。借助 R&S®DF-ATC-S 系统,空中交通管制员能够根据飞机的无线电发射准确确定飞机方向。测向结果可用于向飞行员传达朝向机场的磁航向 (QDM) 信息,并可显示在其他雷达屏幕或地图上。这有助于减少呼号混淆情况,确定故障飞机的响应情况。

可用型號

可用型號
型号
频率范围
频率通道
测向天线
系统测向灵敏度
系统测向精度

R&S®DF-ATC-S1

订单号码 3063.4002.02

频率范围
117.975 MHz 至 137 MHz
频率通道
最多 4 个
测向天线
R&S®ADD317 窄孔径
系统测向灵敏度
3 µV/m
系统测向精度
1° RMS 典型值

R&S®DF-ATC-S2

订单号码 3063.4102.02

频率范围
117.975 MHz 至 450 MHz
频率通道
最多 4 个
测向天线
R&S®ADD317 窄孔径
系统测向灵敏度
5 µV/m
系统测向精度
1° RMS 典型值

R&S®DF-ATC-S3

订单号码 3063.4202.02

频率范围
117.975 MHz 至 450 MHz
频率通道
最多 32 个
测向天线
R&S®ADD095 宽孔径
系统测向灵敏度
2 µV/m
系统测向精度
0.5° RMS 典型值

R&S®DF-ATC-S4

订单号码 3063.4302.02

频率范围
117.975 MHz 至 450 MHz
频率通道
最多 32 个
测向天线
R&S®ADD095 宽孔径
系统测向灵敏度
2 µV/m
系统测向精度
0.5° RMS 典型值

可用选项

附件
产品
描述
R&S®DF-ATC-C1

订单号码 3063.5009.02

描述

测向控制触摸面板 PC

R&S®DF-ATC-A1

订单号码 3063.5044.02

描述

管理员触摸面板 PC

R&S®DF-ATC-M1

订单号码 3063.5050.00

描述

适用于 R&S®DF-ATC-S1/S2 的天线杆(包括障碍灯和红/白涂色)

适用于 R&S®ADD317 的天线杆,5 m,热浸镀锌。包括障碍灯 (10cd) 和特殊红/白涂色,符合 ICAO 附件 14 第 I 卷规定。

R&S®DF-ATC-M2

订单号码 3063.5067.00

描述

适用于 R&S®DF-ATC-S3/S4 的天线杆(包括障碍灯、涂色和爬梯)

适用于 ADD095 的天线杆,5 m,热浸镀锌。包括障碍灯 (10cd) 和特殊红/白涂色,符合 ICAO 附件 14 第 I 卷规定。

R&S®RMS-FX-OPS

订单号码 3063.5080.02

描述

户外 UPS (230 V)

R&S®RMS-FX-OPS

订单号码 3063.5080.03

描述

户外 UPS (120 V)
