R&S®ATS800B CATR 台式天线测试系统

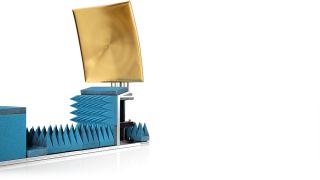

R&S®ATS800B CATR Benchtop antenna test system
打开灯箱

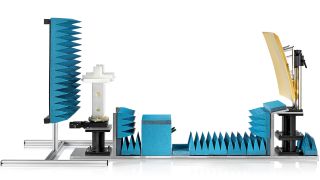

R&S®ATS800B CATR Benchtop antenna test system
打开灯箱

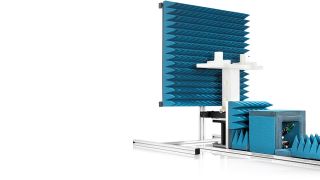

R&S®ATS800B CATR Benchtop antenna test system
打开灯箱
R&S®ATS800B CATR Benchtop antenna test system R&S®ATS800B CATR Benchtop antenna test system R&S®ATS800B CATR Benchtop antenna test system

主要特点

  • 极其紧凑的远场空中传输 (OTA) 测试系统,基于紧缩场天线测试 (CATR) 技术
  • 0.8 m2 空间实现一流的测量频率范围
  • 先进的反射器,确保出色的静区精度
  • 独特的台式 CATR 系统,支持 50 GHz 以上的宽频率范围
  • 间接远场方法(经 3GPP 批准用于 5G OTA 测试)

CATR 机架型天线测试系统

    1. 极其紧凑的远场空中传输 (OTA) 测试系统
    2. 基于紧缩场天线测试 (CATR) 技术
    3. 支持在任何规模的实验室进行远场空中传输射频测量
    4. 降低成本,确保按期发布产品,加快产品上市

特性和优点

紧凑

Compact benchtop far field antenna test system

The R&S®ATS800B is a compact benchtop CATR far field antenna test system.

R&S®ATS800B
打开灯箱

大范围静区

State-of-the-art reflector surface precision

The R&S®ATS800B includes a reflector with highest surface precision for extremely high quiet zone accuracy.

R&S®ATS800B
打开灯箱

宽频率范围

CATR system supporting over 50 GHz

The R&S®ATS800B supports a very high frequency range over 50 GHz, covering the complete FR2 frequency band.

R&S®ATS800B
打开灯箱

快速获取结果

Fast and smooth measurement results

One-stop-shop solutions combining the R&S®ATS800B with a Rohde & Schwarz test system ensure fast and smooth measurements in the lab and provide optimized capabilities for determining a 5G device’s antenna performance and characteristics in the millimeterwave range.

降低成本

Keeps the customer product launch on schedule

The R&S®ATS800B helps optimize the overall RF performance of RF modules in the early phases of development. This prevents costly and time-consuming modifications for a large number of prototypes at a later stage. Over-the-air RF testing during development reduces costs and keeps the product launch on schedule with a faster time to market.
