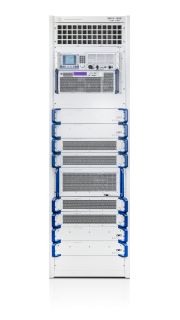

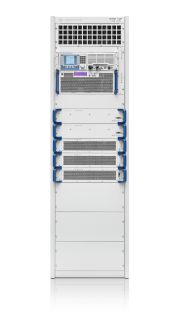

M3SR Series4100 软件定义电台

用于固定和船载通信的高频电台系列

M3SR Series4100 软件定义电台
显示更多详细信息
M3SR Series4100 软件定义电台
显示更多详细信息
M3SR Series4100 软件定义电台
显示更多详细信息
M3SR Series4100 软件定义电台
显示更多详细信息
M3SR Series4100 软件定义电台
显示更多详细信息

主要特点

  • 频率范围:1.5 MHz 至 30 MHz (TX),10 kHz 至 30 MHz (RX)
  • 提供 150 W、500 W 和 1000 W 三种功率等级,并配备独立接收机
  • 提供高功率等级:5000 W 和 10 000 W
  • 支持 LINK 11、LINK 22 和 LINK Y
  • 嵌入式安全语音和数据功能

简介

罗德与施瓦茨推出新一代先进通信系统,旨在推动高频电台迈向新高度。高频宽带功能符合 MIL-STD-188-110D 和 STANAG 5069 标准,可加速高频数据传输,实现与卫星通信相当的数据速率。短波通信易于部署且具备高可靠性,深受全球安全部门、组织机构和军事用户的青睐与重视。

特性和优点

支持 IP,便于集成



  • R&S®IPoA 无线电传输
  • R&S®IPoA 协议功能
  • R&S®IPoA 嵌入式服务
    • 警报信息
    • 短数据消息
    • GPS 信息报告
  • IPoA 功能符合 STANAG 4538
  • IPoA 功能基于 WBxDL(最高 48 kHz 宽带)
  • VoIP、SIP 和电话转接
  • 通过 IP 实现音频传输和远程控制
  • 电话转接
  • 域连接


可互操作波形

可互操作波形,适用于多国联合行动



  • ALE-2G,符合 MIL-STD-188-141B
  • ALE-3G,符合 STANAG 4538
  • ALE-4G,符合 MIL-STD-188-141D
  • 高频宽带调制解调器,符合 MIL-STD-188-110D 和 STANAG 5069 标准
  • 多种高频窄带调制解调器


通信安全可靠



  • 安全数字语音 (SDV)
    • 最后一道语音通信保障
  • R&S®SECOM-H EPM (ECCM)
  • 黑密钥管理,增强安全性


出色的无线电参数

  • 凭借优异的接收机指标,具备共址能力
  • 选择性电平控制,优化发射功率(软件选件)
  • 数字调谐射频选频(硬件选件)
  • 数字中频和音频信号处理

易于维护

  • 加固设计,适合在恶劣的环境条件下使用
  • 强大的内置测试 (BIT)
  • 卓越的可靠性
  • 模块易于更换

可用型号

可用选项
