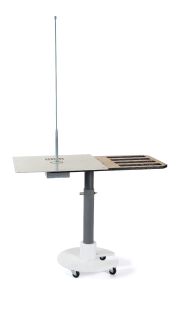

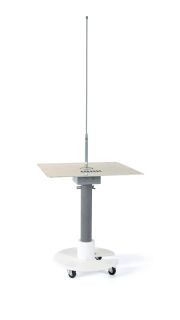

R&S®RAS 专门设计用于汽车电子和军事 EMI 测试系统。R&S®RAS 天线支架规格符合 MIL STD 461E/F/G 和 CISPR 25 标准，并且包含一个附加接地板以便根据 MIL STD 461F/G 标准进行测试。支架包含木制支撑平台以根据 MIL-STD-461E 和 CISPR 25 标准支撑拉杆天线的接地面和桌面。可应要求提供符合 MIL-STD-461E 和 CISPR 25 标准的接地面。
| 高度 | 0.80 m 至 1.00 m，可按 0.05 m 幅度进行调节 |
| 材料 | Delrin® 均聚聚甲醛、聚氯乙烯 (PVC)、木料 |
| 脚轮 | 是 |
| 外形尺寸 | 915 mm x 480 mm x 800 mm (3.00 ft x 1.57 ft x 2.62 ft) |
| 天线支架重量 | 14 kg (30.86 lbs) |

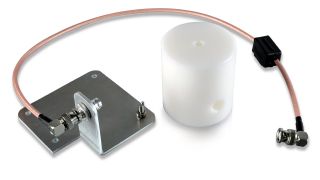

| 附件 | 包括 MIL-STD461-F 拉杆天线适配器、接地板、拉杆天线铁氧体电缆组件 |
