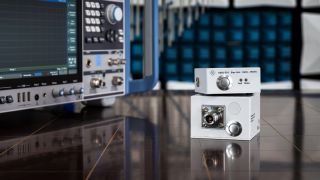

R&S®ESCU 增强型信号调理单元

前置放大器的演进发展

R&S®ESCU 增强型信号调理单元
打开灯箱
R&S®ESCU 增强型信号调理单元
打开灯箱
R&S®ESCU 增强型信号调理单元
打开灯箱
R&S®ESCU 增强型信号调理单元
打开灯箱

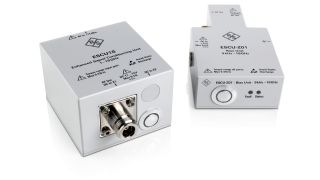

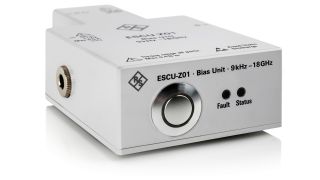

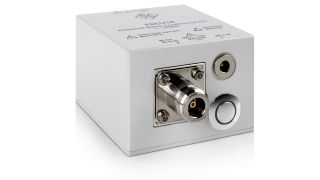

R&S®ESCU 增强型信号调理单元,高前视图 R&S®ESCU 增强型信号调理单元,侧视图 R&S®ESCU 增强型信号调理单元,侧视图 R&S®ESCU 增强型信号调理单元,前视图

主要特点

  • 具有高增益,噪声系数 ≤4 dB
  • 配备偏置单元,在测试场所无需使用电源适配器
  • R&S®ESCU 输入端经过强化,能够承受意外的脉冲和静电放电
  • 结构紧凑,轻松安装到 R&S®UAS 天线支架

前置放大器的演进发展

R&S®ESCU 增强型信号调理单元的频率范围为 100 MHz 至 18 GHz。这款高性能前置放大器能够提高整体系统的灵敏度,非常适合测试低功率信号。 控制室中的偏置单元为 R&S®ESCU 供电,显著降低了测试环境中可能出现的电源噪声。 由于前置放大器非常容易受到静电放电的影响,因此 R&S®ESCU 输入端经过强化,能够承受高电平放电,提高了耐用性,尤其是在连接到天线的情况下。

特性和优点

噪声系数低,适用于 EMI 和 RSE 测试

R&S®ESCU 前置放大器将整体测量的本底噪声降低到 EMI 测量标准所规定限值线的 10 dB 以下。

消除测试场所中可能存在的噪声源

R&S®ESCU 配有偏置单元,在电波暗室中无需使用外部电源适配器。偏置单元通过直接连接到前置放大器的射频电缆提供直流电源。

能够承受脉冲和静电放电


低噪声放大器或前置放大器能够清楚展示有用的微弱信号。但是,前置放大器非常敏感,容易受到突发浪涌的影响。 在 EMI 测试过程中,R&S®ESCU 能够处理来自被测设备 (EUT) 的偶发性脉冲信号。R&S®ESCU 输入端经过强化,能够承受超过 8 KV 的静电放电。

可用型號

可用型號
型号
频率范围
最小增益
增益平坦度
噪声系数
最大输入电平

R&S®ESCU08

订单号码 5602.9825.20

频率范围
(30 MHz) 0.1 至 8 GHz
最小增益
≥ 33 dB
增益平坦度
≤ ±2 dB
噪声系数
≤ 3.5 dB
最大输入电平
+15 dBm

R&S®ESCU08

订单号码 5602.9825.30

频率范围
(30 MHz) 0.1 至 8 GHz
最小增益
≥ 41 dB
增益平坦度
≤ ±2 dB
噪声系数
≤ 3.5 dB
最大输入电平
+15 dBm

R&S®ESCU18

订单号码 5602.9825.40

频率范围
1 GHz 至 18 GHz
最小增益
≥ 41 dB
增益平坦度
≤ ±2 dB
噪声系数
≤ 4 dB
最大输入电平
+15 dBm

R&S®ESCU08

订单号码 5602.9825.21

频率范围
(30 MHz) 0.1 至 8 GHz
最小增益
≥ 31 dB
增益平坦度
≤ ±3 dB
噪声系数
≤ 3.5 dB
最大输入电平
+15 dBm

R&S®ESCU08

订单号码 5602.9825.31

频率范围
(30 MHz) 0.1 至 8 GHz
最小增益
≥ 39 dB
增益平坦度
≤ ±3 dB
噪声系数
≤ 3.5 dB
最大输入电平
+15 dBm

R&S®ESCU18

订单号码 5602.9825.41

频率范围
1 GHz 至 18 GHz
最小增益
≥ 39 dB
增益平坦度
≤ ±3 dB
噪声系数
≤ 4 dB
最大输入电平
+15 dBm

可用选项

附件
产品
描述
R&S®ESCU-Z10

订单号码 5602.9760.00

描述

安装托架,用于将 R&S®ESCU 固定到安装了 R&S®HF907 喇叭天线的 R&S®UAS 天线支架。

机架安装套件
产品
描述
R&S®ESCU-ZZA

订单号码 5602.9060.00

描述

19" 机架安装适配器,1 HU,适用于安装一台 R&S®ESCU-Z01
