R&S®HL451 对数周期高频天线

适用于发射和接收的对数周期高频天线

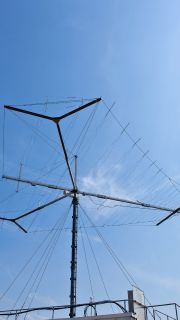

R&S®HL451 对数周期高频天线
打开灯箱
R&S®HL451 对数周期高频天线
打开灯箱

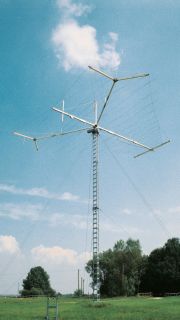

R&S®HL451 对数周期高频天线,应用图像 安装在地面上的 R&S®HL451 和 R&S®KM451B2 天线杆

主要特点

  • 接收频率高于 2 MHz
  • 发射频率高于 5 MHz
  • 体型小巧,全长半波元件实现高增益
  • 装配简单快捷
  • 适合屋顶安装

适用于发射和接收的对数周期高频天线

R&S®HL451 对数周期高频天线设计紧凑且可旋转,可用于发射和接收水平极化波。天线的发射频率范围为 5 MHz 至 30 MHz,非常适用于中长距离通信。接收频率高于 2 MHz,可覆盖所有距离。天线经过优化,尺寸小、重量轻、维护成本极低。

特性和优点

接收频率高于 2 MHz,发射频率高于 5 MHz

适用于中长距离接收和发射

天线的发射频率范围为 5 MHz 至 30 MHz,非常适用于中长距离通信。
接收频率高于 2 MHz,可覆盖所有距离。

小巧体积仍可实现高增益

提供良好的接收性能

R&S®HL451 对数周期高频天线设计精密,采用全长半波元件,小巧体积仍可实现高增益。

装配简单快捷

安装快速,降低安装成本

天线设计精密,装配简单快捷。这样可以快速安装 R&S®HL451,降低了安装成本,确保天线即装即用。

适合屋顶安装

可安装在建筑物上

这款可旋转天线尺寸极小,可以安装在屋顶上。不同长度的天线杆可供选择,可用于各种配置。

可用选项

通用附件
产品
描述
R&S®KM451B2

订单号码 4028.3400.02

描述

格子形天线杆,长度:15 m(标配)

适用于 R&S®HX002、R&S®HX002A1、R&S®HX002H1、R&S®HL451 和 R&S®HL471 的格子形天线杆,15 m,含拉索和安全攀爬设备

R&S®KM451B1

订单号码 4028.3351.02

描述

格子形天线杆,长度:10 m(用于屋顶安装)

适用于 R&S®HX002、R&S®HX002A1、R&S®HX002H1、R&S®HL451 和 R&S®HL471 的格子形天线杆,10 m,含拉索和安全攀爬设备

R&S®KM451F1
描述

危险警示灯

适用于 R&S®KM451B1/B2/B3 天线杆的危险警示灯

R&S®RD130
描述

天线旋转器

适用于 R&S®HL451/HL471 的旋转器

R&S®RD008Z1
描述

旋转接头/调适装置

适用于 R&S®RD130 旋转器上 R&S®HL451/471 n x 360° 旋转的调适装置,包括高频旋转接头和紧固套件

R&S®GB130
描述

控制单元

适用于 R&S®RD130 天线旋转器的控制单元和电源,可通过电脑或手动使用控制单元进行控制

R&S®GK130
描述

电缆组件(将 R&S®GB130 连接至 R&S®RD130)

连接 R&S®GB130 控制单元和 R&S®RD130 旋转器的电缆组件,包括屏蔽控制电缆和电源线(无连接器),长度:50 m

R&S®GK130
描述

电缆组件(将 R&S®GB130 连接至 R&S®RD130)

连接 R&S®GB130 控制单元和 R&S®RD130 旋转器的电缆组件,包括屏蔽控制电缆和电源线(无连接器),长度:80 m

R&S®GK130
描述

电缆组件(将 R&S®GB130 连接至 R&S®RD130)

连接 R&S®GB130 控制单元和 R&S®RD130 旋转器的电缆组件,包括屏蔽控制电缆和电源线(无连接器),长度:120 m

R&S®GK130
描述

电缆组件(将 R&S®GB130 连接至 R&S®RD130)

连接 R&S®GB130 控制单元和 R&S®RD130 旋转器的电缆组件,包括屏蔽控制电缆和电源线(无连接器),长度:200 m
