R&S®HMP4000 电源系列

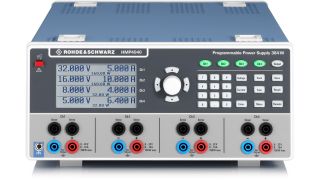

R&S®HMP4000 Power Supply
打开灯箱

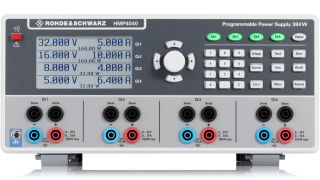

R&S®HMP4000 Power Supply
打开灯箱

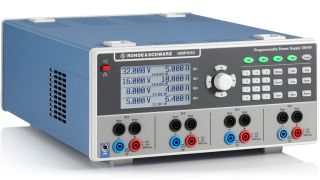

R&S®HMP4000 Power Supply
打开灯箱

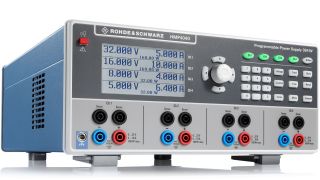

R&S®HMP4000 Power Supply
打开灯箱
R&S®HMP4000 Power Supply
打开灯箱
R&S®HMP4000 Power Supply R&S®HMP4000 Power Supply R&S®HMP4000 Power Supply R&S®HMP4000 Power Supply R&S®HMP4000 Power Supply

主要特点

  • 3 个或 4 个通道,总输出功率最大值为 384 W
  • 每个通道的最大输出电流:10 A
  • 每个通道的最大输出功率:160 W
  • 每个通道的最大输出电压为 32 V;串联操作下可提供更高电压
  • 电子保险丝 (OCP)、可调最大电压 (OVP)、过热保护 (OTP)

聚焦 EUR 1,930

  • DC power supply promotions
  • 3 year warranty

单台仪器中最多四个通道

R&S®HMP 直流电源主要设计用于工业应用。这些坚固仪器具有三个或四个输出通道,每个通道的输出电流高达 10 A,非常适用于广泛的应用。它们可提供高效率、低残余纹波和多种保护功能。

特性和优点

不止满足日常需求

  • 所有通道都采用电位隔离且浮地
  • 所有通道的电压范围都相同
  • 所有通道都具有防过载和防短路保护
  • 并联和串联应用
  • 恒定电压和恒定电流模式
  • 跟踪和链接功能
  • 仪器和被测设备保护功能
  • 现代仪器概念:小巧紧凑、静音运行
R&S®HMP4030/R&S®HMP4040
打开灯箱

输出通道可通过并联提供更大的输出电流,或通过串联提供更高的输出电压。

便捷的操作

  • 操作直观
  • 操作状态采用颜色编码
  • EasyArb 功能适用于所有通道
  • 保存和调用仪器设置
R&S®HMP4030/R&S®HMP4040
打开灯箱

所有设置和操作状态都清晰可见。

非常适用于实验室和测试系统

  • 为实验室应用和系统机架量身定制
  • 感应补偿功能可满足更严格的精度要求
  • 前面板和后面板连接
  • 远程控制仪器功能
R&S®HMP4030/R&S®HMP4040
打开灯箱

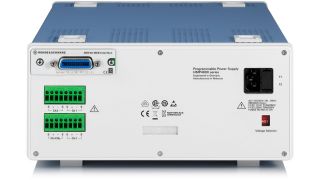

所有通道的连接(包括感应线)都位于后面板

型号名称
输出通道数
最大输出功率
每个通道的输出电压
每个通道的输出电流
最小值
R&S®HMP4030

订单号码 3629.6776.03

输出通道数
3
最大输出功率
384 W
每个通道的输出电压
0 V 至 32 V
每个通道的输出电流
10 A
最小值
R&S®HMP4040

订单号码 3629.6776.04

输出通道数
4
最大输出功率
384 W
每个通道的输出电压
0 V 至 32 V
每个通道的输出电流
10 A
最小值
规格
电气参数
输出通道数   3/4
总输出功率   最大 384 W
每个通道的最大输出功率   160 W
每个通道的输出电压   0 V 至 32 V
每个通道的最大输出电流   10 A
电压纹波与噪声(20 Hz 至 20 MHz)   < 1.5 mV (RMS)(测量值)
电流纹波与噪声(20 Hz 至 20 MHz)   < 1 mA (RMS)(测量值)
负载恢复时间*1)   < 1 ms(测量值)
编程/回读分辨率 电压 1 mV
  电流 < 1 A:0.2 mA;≥ 1 A:1 mA
回读精度(±(输出的 % + 偏移量)) 电压 < 0.05% + 5 mV
  电流 < 0.1% + 2 mA
特殊功能
测量功能   电压、电流
保护功能   OVP、OCP、OTP
FuseLink 功能
上电时保险丝延迟
感应补偿功能
吸收模式
顺序输出
触发输入/输出
任意波功能   ● (EasyArb)
模拟/调制接口
数据记录
显示屏和接口
显示屏   240 像素 × 128 像素 LCD
后面板连接   采用每通道 4 线连接器插头块
远程控制接口   标配:USB、LAN;可选:IEEE-488 (GPIB)、RS-232
通用数据
尺寸(宽 × 高 × 深)   285 × 136 × 405 mm
重量   12.4 kg/12.8 kg
机架安装   R&S®HZP91 选件
*1)在设定电压的 ±20 mV 范围内,负载变化 10% 至 90%。

可用选项

通用
产品
描述
Dual Interface
R&S®HO720

订单号码 3594.3660.02

描述
双接口 (RS-232/USB)
IEEE-4888 (GPIB) Interface
R&S®HO740

订单号码 3622.3194.02

描述
IEEE-488 (GPIB) 接口
通用附件
产品
描述
HZP91

订单号码 5800.0939.02

描述
19" 机架适配器,4 HU
