主要特点

  • 带宽:70 MHz 至 300 MHz
  • 采样率:最大 2.5 Gsample/s
  • 存储深度:最大 20 Msample
  • ADC 分辨率:10 位
  • 显示屏:10.1" 电容式触摸屏

“十”力钜献,显示更多信号细节

R&S®RTB2000 示波器“十”力优异,它将 10 位 ADC、10 Msample 存储和 10.1" 触摸屏以及智能操作理念精准结合,非常适用于大学实验室、嵌入式设计开发过程中的故障排除以及生产和维修部门。

  • 垂直分辨率是一般 8 位 ADC 的四倍。
  • 始终保持高采样率
  • 具备同级别中最高显示分辨率的最大显示屏

特性和优点

信号分析:快速获取结果

可查看存在于大信号中的小信号细节

R&S®RTB2000 使用罗德与施瓦茨设计的 10 位模数转换器,与传统 8 位模数转换器相比,精度提升 4 倍。分辨率越高,波形越清晰,进而显示更多在其他情况下可能忽略的信号细节。比如在测量开关电源的特性时, 在单次捕获中,需要同时测量开关设备开启和关断时的电压。

10 位模数转换器
打开灯箱

10 位模数转换器

罗德与施瓦茨设计的 10 位模数转换器能确保最高分辨率下的最高信号保真度。

在全带宽下采集时间更长

10 Msample(标配);20 Msample(交织模式)

R&S®RTB2000 提供头等的存储深度:每个通道的存储深度达到 10 Msample,在交织模式下存储深度可达 20 Msample。这是同类示波器的 10 倍。用户可以在高采样率下捕获更长的采集序列,以便获得更详细的分析结果,例如分析开关电源的瞬态响应。

10 Msample 标配存储
打开灯箱

10 Msample 标配存储

捕获和分析长时间的脉冲和突发信号,标配存储深度最高达 20 Msample。

分段存储

160 Msample,带历史功能

R&S®RTB-K15 选件带有深分段存储功能,能分析较长观测时间的信号序列。可以在几秒或几分钟内捕获有通信间隔的协议信号(例如 I²C 或 SPI)。由于分段长度可调,因此 160 Msample 的存储深度能得到合理的利用。在历史模式下,160 Msample 最大分段存储深度存储的所有波形都可用于进一步分析。

160 Msample 分段存储
打开灯箱

160 Msample 分段存储

具备头等的 160 Msample 存储,可捕获最长时间的信号。

使用混合信号示波器选件进行逻辑分析

16 个附加数字通道

使用 R&S®RTB-B1 选件,R&S®RTB2000 可升级为具有 16 个附加数字通道、操作直观的混合信号示波器。该示波器能同时捕获和分析嵌入式设计的模拟和数字信号。例如,可以使用光标测量很方便地确定模数转换器输入输出之间的延迟。

4 位 DAC 信号变化。
打开灯箱

4 位 DAC 信号变化。

R&S®RTB2000 能同时捕获和分析模拟和数字信号。

波形和码型发生器

生成模拟和数字激励

R&S®RTB-B6 波形和码型发生器的数据传输率高达 50 Mbit/s,适用于教育和硬件原型开发。除了常见的正弦波、方波/脉冲波、锯齿波和噪声波形外,此发生器还可输出任意波形以及 4 位信号码型。波形和码型可以 CSV 文件形式导入,也可从示波器波形中复制。可使用预定义码型,比如 I2C、SPI、UART 以及 CAN/LIN。

波形和码型发生器
打开灯箱

波形和码型发生器

除了常见的正弦波、方波/脉冲波、锯齿波和噪声波形外,此发生器还可输出用户定义的波形以及 4 位信号码型。

数字电压表

测量并显示电势

R&S®RTB2000 在每个通道上设有 3 位电压表 (DVM) 和 6 位频率计,可实现同步测量。标配测量功能包括 DC、AC + DC (RMS) 和 AC (RMS)。

数字电压表
打开灯箱

数字电压表

3 位电压表可测量并显示电路上两点之间的电势差。

频率分析模式

有些故障难以察觉,这通常是因为时间和频率信号之间的相互作用。只要按下按钮,输入中心频率和频率范围,即可激活 R&S®RTB2000 的 FFT 功能。R&S®RTB2000 示波器具有强大的 FFT 功能,可分析最长达 128 kpoints 的信号。其他实用功能包括光标测量和频域自动设置。

频率分析模式
打开灯箱

频率分析模式

强大的 FFT 功能可分析最长达 128 kpoints 的信号。

模板测试模式

模板测试能快速显示特定信号是否在规定的容差范围内。此类测试使用合格/不合格评估统计数据,评估被测设备 (DUT) 的质量和稳定性, 并且快速确定信号异常和意外结果。当模板被违反时,测量停止。R&S®RTB2000 的 AUX-OUT 连接器将在每次模板违规时生成一次脉冲输出。此脉冲输出可用于触发测量设置中的操作。

模板测试,提供结果统计数据
打开灯箱

模板测试,提供结果统计数据

合格/不合格评估统计数据可评估被测设备的质量和稳定性。

适用于教学实验室

在教学实验室中,R&S®RTB2000 示波器是指导学生使用示波器进行测量的理想选择。这款示波器将易用性概念与先进技术相结合,而且价格实惠。10.1" 高分辨率大屏幕能清晰显示每个信号细节,一台仪器,多人共享。借助便捷灵活的屏幕注释工具,可以高效地创建报告。

适用于教学实验室
打开灯箱

适用于教学实验室

多功能、坚固设计以及小尺寸使其成为各院校日常使用的最佳仪器。

可用型号

可用选项

R&S®RTB2000——媒体中心

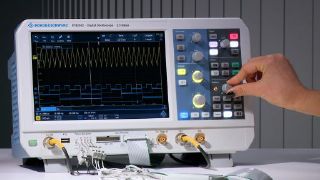

RTB2000 - 10 bit ADC
10 位 ADC,能够查看叠加在大信号上的小信号细节
RTB2000 - 10 Msample memory
10 Msample 存储深度,在全带宽下采集时间更长

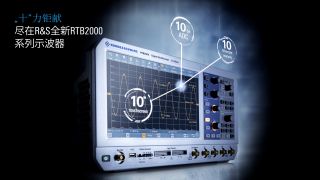

RTB2000 - high-resolution capacitive touchscreen
10.1" 高分辨率电容式触摸屏,支持手势操作

其他相关信息

Rocket Science AG – 案例研究

日常操作中的有源噪声控制——Rocket Science 使用先进的有源噪声控制和罗德与施瓦茨示波器应对刺激性噪声。

现在下载

示波器和探头基础知识

了解示波器的基本操作、探头和各种示波器相关应用,助您优化测量结果。

更多信息

示波器促销

根据您的需求选择合适的罗德与施瓦茨促销活动,节省预算

更多信息

购买教育版罗德与施瓦茨示波器,节省 50% 以上的费用

更多信息

关于数字设计和功率电子应用的示波器网络研讨会中心

更多信息

罗德与施瓦茨示波器 10 年创新

更多信息
