mmWave 变频器软件控制选件

mmWave 变频器软件控制选件
打开灯箱

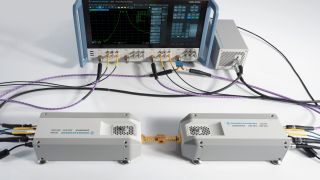

mmWave converter software control options, Application Image

主要特点

  • 轻松清楚的配置
  • 紧凑型解决方案
  • 功率校准和调平工具支持

毫米波变频器软件控制选件

R&S®ZNA-K8/R&S®ZVA-K8 软件选件适用于 ZNA 和 ZVA 高端矢量网络分析仪,通过一个清晰的对话框为使用 ZVA-Zxxx 和 ZCxxx 变频器的装置提供所有必要的参数设置。选件确保测量简单、无错、准确。

特性和优点

轻松清楚的配置

  • 在一个对话框中设置所有参数
  • 自动配置所有本振、射频和中频频率
  • 自动设置所有功率电平以保护被测设备和变频器

打开灯箱

紧凑型解决方案

  • 双端口/四端口 ZNA 配备 ZNA-B8 选件,支持双端口/四端口毫米波装置,无需外部本振信号源。
  • 选件 R&S®ZNA-B8(毫米波变频器本振)可以使用 ZNA 内部本振以将信号馈入毫米波变频器,无需使用测试端口。

打开灯箱

功率校准和调平工具支持

  • 支持所有罗德与施瓦茨功率计和 Erickson 毫米波功率计(最高 1.1 THz)
  • 支持(附加)“调平工具”,以通过改变射频输入功率来测量用于功率扫描的变频器特性
  • 准确的有源设备特性测量,例如通过用于通道功率测量的功率扫描

打开灯箱

结合其他选件

  • ZNA-K8 可与 ZNA-K4 选件相结合,以使用毫米波变频器进行变频测量
  • ZVA-K8 包含 ZVA-K4 选件,以使用毫米波变频器进行变频测量

打开灯箱

可用型號

可用型號
型号
支持的矢量网络分析仪
自动化频率配置
自动化功率电平设置
其他配置参数

R&S®ZNA-K8

订单号码 1332.5388.02

支持的矢量网络分析仪
自动化频率配置
自动化功率电平设置
其他配置参数
本振信号源中频输入

R&S®ZVA-K8

订单号码 1307.7022.02

支持的矢量网络分析仪
自动化频率配置
自动化功率电平设置
其他配置参数
-
