主要特点
- 5 kHz 至 44 GHz(提供跟踪源型号)
- 性能:优异的显示平均噪声电平 (DANL)
- 便携:轻便(最轻款仅重 2.5 kg),电池可连续工作一整日
- 价格:实惠
- 采用多点触控界面,重新定义用户体验

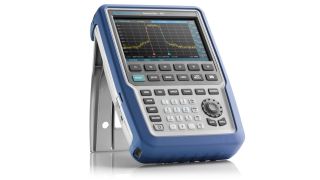

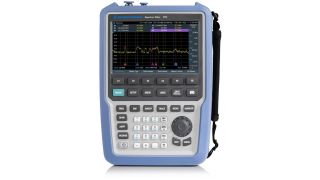

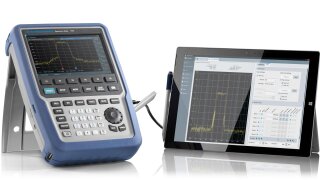

R&S®Spectrum Rider FPH 采用德国工程和人体工程学设计,性能卓越,价格合理。它具备优越的射频性能和低至 –163 dBm 的 DANL,可捕获微弱信号。最轻款便携式 R&S®Spectrum Rider FPH 仅重 2.5 kg,电池续航时间超过 4.5 个小时。价格合理,可随时随地进行测量。
频率范围可扩展
每个型号的 R&S®Spectrum Rider FPH 均可以扩展频率范围:

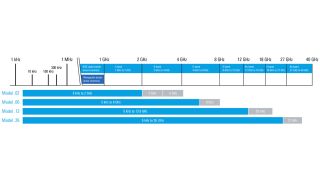

轻松扩展频率
每个型号均可使用激活码扩展频率范围。无需停机,简单轻松。
优越的显示平均噪声电平 (DANL)
R&S®Spectrum Rider 的 DANL 低至 –146 dBm(典型值)。DANL 较低,表明分析仪可捕获微弱信号。开启前置放大器(选件),将灵敏度进一步提升到低至 –162 dBm(20 MHz 至 3 GHz)。前置放大器选件:

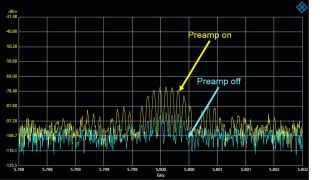

前置放大器使微弱信号清晰可见
过于靠近噪声基底的信号通常会被忽略。前置放大器开启时信号变得清晰可见,确保分析更加轻松。

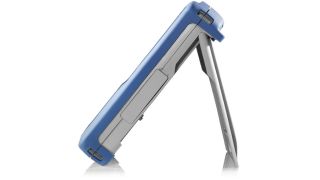

最轻款仅重 2.5 kg(取决于型号)
R&S®Spectrum Rider FPH 采用人体工程学设计,小巧轻便。该款仪器随附便于使用的边带,可在短测量周期内为用户双手提供支撑。R&S®HA-Z322 皮套含精心设计的安全带,可将仪器重量均匀分布到人体以支持免提操作。
使用 R&S®HA-Z322 皮套进行免提操作
充电一次工作一整天
R&S®Spectrum Rider FPH 的电池可支持一整日现场工作。设备开启时,电池充电需要 4 小时。设备关闭或使用外部充电器时充电速度更快,只需 3.5 小时。

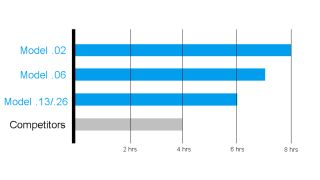

手持式分析仪的电池使用寿命
R&S®Spectrum Rider FPH 的电池使用寿命优于其他手持式分析仪
触摸屏手势、防反光屏幕和背光键盘
用户界面操作与智能手机一样简单,可增强用户体验。触摸屏操作不仅限于菜单栏;用户还可以移动频谱、放大/缩小范围以及添加/删除标记等。

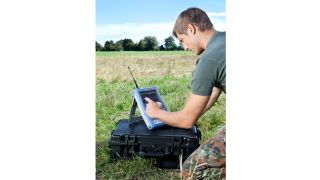

防反光屏幕
防反光屏幕使分析仪更适用于户外作业,即使在明亮的阳光下也同样如此
订单号码 1321.1111.02
订单号码 1321.1111.06
订单号码 1321.1111.13
订单号码 1321.1111.26
订单号码 1321.1711.23
订单号码 1321.1711.36
订单号码 1321.1711.44
订单号码 1321.1711.54
订单号码 1321.0667.02
频率升级,2 GHz 至 3 GHz
频谱分析仪频率升级,2 GHz 至 3 GHz
订单号码 1321.0673.02
频率升级,3 GHz 至 4 GHz
频谱分析仪频率升级,3 GHz 至 4 GHz(需要 R&S®FPH-B3)
订单号码 1321.0767.02
频率升级,6 GHz 至 8 GHz
频谱分析仪频率升级,6 GHz 至 8 GHz
订单号码 1321.0773.02
频率升级,13.6 GHz 至 20 GHz
频谱分析仪频率升级,13.6 GHz 至 20 GHz
订单号码 1321.0780.02
频率升级,26.5 GHz 至 31 GHz
频谱分析仪频率升级,26.5 GHz 至 31 GHz
订单号码 1334.8532.02
100 Hz 频率扩展
订单号码 1321.0680.02
前置放大器
频谱分析仪前置放大器,5 kHz 至 4 GHz
订单号码 1321.0867.02
前置放大器
频谱分析仪前置放大器,5 kHz 至 8 GHz
订单号码 1321.0850.02
前置放大器
频谱分析仪前置放大器,5 kHz 至 20 GHz
订单号码 1321.0873.02
前置放大器
频谱分析仪前置放大器,5 kHz 至 31 GHz
订单号码 1334.6600.02
频谱分析仪前置放大器,5 kHz 至 44 GHz
订单号码 1321.0596.02
射频输入:N 型连接器
订单号码 1321.0696.02
调幅/调频模拟调制分析
订单号码 1321.0709.02
功率探头支持
订单号码 1321.0721.02
通道功率计
订单号码 1321.0621.02
接收机模式
订单号码 1334.6946.02
EMF Measurement Applications
订单号码 1321.0738.02
使用功率探头的脉冲测量
订单号码 1321.0715.02
干扰分析
订单号码 1321.0615.02
信号强度测绘
