主要特点
- Selectable PAM order from 2 to 8
- Automatic PAM level detection
- PAM enabled eye analysis, incl. HW-CDR
- PAM enabled jitter & noise decomposition
R&S®PAM-N analysis oscilloscope software
General Analysis
打开灯箱
打开灯箱
Brief description
The PAM-N analysis option enables measurements on signals up to PAM-8 order. With the option installed, the R&S®RTP and RTO6 oscilloscopes offer additional PAM-N analysis capabilities within automated measurements, advanced eye as well as jitter and noise analysis.
特性和优点
Easy signal configuration
Up to PAM-8
The PAM-N analysis option enables measurements on signals up to PAM-8 order.

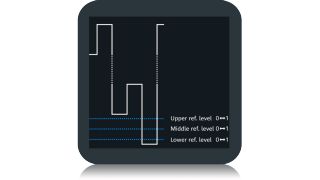

For easy signal configuration, select a respective interface standard in the Signal Configurator. For advanced customization, use the full control for the definition of signal levels and reference levels for all PAM levels and transitions.
打开灯箱

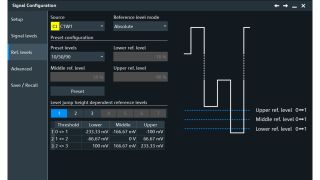

Signal configurator: full control of signal and reference levels for PAM signals up to PAM-8
Jitter and noise decomposition on dedicated PAM levels
Verify specific transitions and levels
The PAM option enables additional functionality for jitter
and noise analysis. With the PAM enabled SW-CDR, jitter
and noise decomposition becomes available for the various
PAM signal components. For in-depth analysis dedicated
jitter and noise components can be selected for
defined base and target PAM levels.
打开灯箱

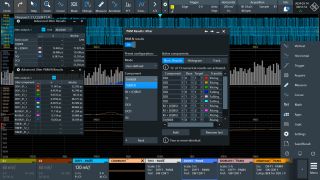

PAM level specific Jitter result selection
Advance Eye Analysis on PAM Signals
Define the focus

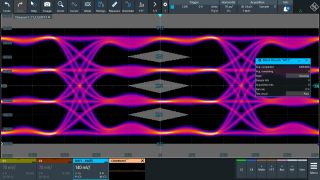

With activated PAM option, also PAM-N eye mask tests and eye measurements become available. Dedicated transitions and eye levels can be defined for the individual eye measurements. For the actual eye diagram, the user can choose between "whole eye", "specific eye" and "selected eye" filter mode.
打开灯箱

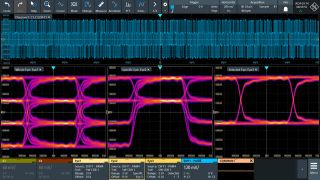

PAM eye diagram displays with different filters on: "Whole eye", "Specific eye", "Selected eye".

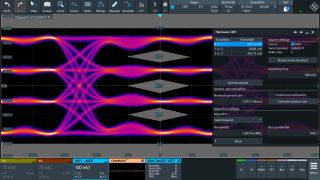

Configurable HW-based CDR
"Live Eye" on PAM signals
For live-eye analysis, the R&S®RTP features a unique
HW-CDR that supports also PAM signals with a maximum
symbol rate of 3.8 GBaud/s. Benefit from the fast acquisition rate and contiously running CDR to validate signal quality over a long time or capture rare signal faults reliable.
打开灯箱
"Live Eye" of 5GBase-T1 PAM4 signal, triggered by the RTP's configurable HW-CDR
