TD-SCDMA and TD-SCDMA enhanced BS/MS tests 数字标准

TD-SCDMA and TD-SCDMA enhanced BS/MS tests 数字标准
打开灯箱

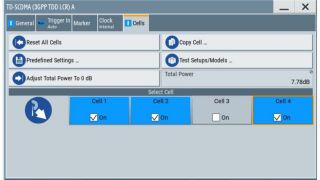

TD-SCDMA 和 TD-SCDMA 增强型基站/移动台测试数字标准,屏幕截图

主要特点

  • 1.28 Mcps 码片速率,符合 3GPP TDD LCR
  • 针对 TD-SCDMA 的 HSDPA 和 HSUPA 功能。
  • 模拟至多四个 TD-SCDMA 小区
  • 支持固定和用户自定义编码方案的全通道编码
  • 用户可配置通道表,针对每个时隙 和导频时隙

TD-SCDMA, TDSCDMA, TDD LCR

适用于所有矢量信号发生器的 xxx-K50/-K51 选件能够轻松灵活地配置实时全编码(传输层和物理层)TD-SCDMA (3GPP TDD LCR) 测试信号,以评估用户设备和基站中的组件、功率放大器、数字基带接收机芯片和射频接收机。TD-SCDMA 信号生成符合 3GPP TDD LCR 标准,低码片速率模式下码片速率为 1.28 Mcps,并包括针对 TD-SCDMA 的 HSDPA 和 HSUPA 功能。

特性和优点

支持所有物理通道

符合 3GPP TDD 标准,低码片速率模式下码片速率为 1.28 Mcps。上行链路和下行链路频段符合 3GPP TS 25.102。上行链路和下行链路至多可以模拟 16 个 DPCH。

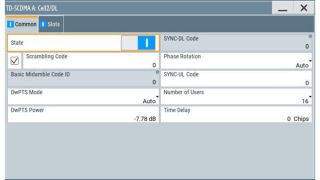

主菜单,基站设置(下行链路)
打开灯箱

主菜单,基站设置(下行链路)

快速信号配置

预定义设置辅助有助于快速生成信号以测试放大器和其他组件。还提供可选的峰值因子优化。

预定义设置对话框
打开灯箱

预定义设置对话框

通道编码

上行链路和下行链路方向的通道编码符合 TS 25.102、TS 25.105 和 TS 25.142 中规定的参考测量通道定义,并包括误码率/误块率插入(需要 TD-SCDMA 增强型选件)。



TD-SCDMA 增强功能。
打开灯箱

TD-SCDMA 增强功能。

可用型號

R&S®SMW200A
型号
描述
基本单元

R&S®SMW-K50

订单号码 1413.4039.02

描述
TD-SCDMA
基本单元

R&S®SMW-K51

订单号码 1413.4080.02

描述
TD-SCDMA 增强型
基本单元

R&S®SMW-K250

订单号码 1413.5087.02

描述
TD-SCDMA (WinIQSIM2™)
基本单元

R&S®SMW-K251

订单号码 1413.5135.02

描述
TD-SCDMA 增强型 (WinIQSIM2™)
基本单元
R&S®SMM100A
型号
描述
基本单元

R&S®SMM-K50

订单号码 1441.1960.02

描述
TD-SCDMA
基本单元

R&S®SMM-K51

订单号码 1441.1953.02

描述
TD-SCDMA 增强型基站/移动台测试
基本单元

R&S®SMM-K250

订单号码 1441.1653.02

描述
TD-SCDMA (WinIQSIM2™)
基本单元

R&S®SMM-K251

订单号码 1441.1647.02

描述
TD-SCDMA 增强型 (WinIQSIM2™)
基本单元
R&S®SMBV100B
型号
描述
基本单元

R&S®SMBVB-K50

订单号码 1423.7782.02

描述
TD-SCDMA
基本单元

R&S®SMBVB-K51

订单号码 1423.7799.02

描述
TD-SCDMA 增强型基站/移动台测试
基本单元

R&S®SMBVB-K250

订单号码 1423.8220.02

描述
TD-SCDMA (WinIQSIM2™)
基本单元

R&S®SMBVB-K251

订单号码 1423.8237.02

描述
TD-SCDMA 增强型基站/移动台测试 (WinIQSIM2™)
基本单元
R&S®SMCV100B
型号
描述
基本单元

R&S®SMCVB-K250

订单号码 1434.4273.02

描述
TD-SCDMA
基本单元

R&S®SMCVB-K251

订单号码 1434.4296.02

描述
TD-SCDMA 增强型基站/移动台测试
基本单元
R&S®SGT100A
型号
描述
基本单元

R&S®SGT-K250

订单号码 1419.6556.02

描述
TD-SCDMA (WinIQSIM2™)
基本单元

R&S®SGT-K251

订单号码 1419.6604.02

描述
TD-SCDMA 增强型 (WinIQSIM2™)
基本单元
