Satellite communications 仪器选件

主要特点

组件、有效载荷和地面站测试信号
支持带跳波束的 DVB-RCS2/-S2/-S2X 标准和 OneWeb
生成宽带宽卫星信号
结合 R&S®SMW200A 时频率范围高达 67 GHz

获取报价

真实的卫星信号生成

综合性先进卫星有效载荷设备测试

罗德与施瓦茨矢量信号发生器配备卫星信号生成选件，是一款创新的射频和毫米波测量解决方案，能够帮助客户成功设计、开发和测试卫星有效载荷、有效载荷子系统和组件。罗德与施瓦茨解决方案非常适用于特性测量和验证，能够满足客户对于物理层测试的性能、成本和调度需求，并符合常见的卫星传输标准。

快速链接

可用的型号

特性和优点

逼真的测试

真实的卫星通信信号

综合性卫星组件和有效载荷测试必须使用真实信号和场景。罗德与施瓦茨矢量信号发生器支持所有相关频段和主要标准，包括带跳波束的 DVB-RCS2/-S2 和 DVB-S2X 以及 OneWeb。信号可用于噪声功率比测量或放大器测试。这样能够在实验室非常真实地模拟设备的后期操作，然后再将设备发射到太空。

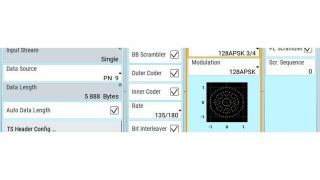

**使用 R&S®SMW200A 生成 DVB-S2X 信号** - R&S®SMW200A 可以针对所有相关标准生成信号，非常适合综合性测试。

轻松进行射频特性测量

根据任何通信标准的线性度和增益转移测量

深入验证变频器、放大器和卫星有效载荷非常重要。R&S®SMW200A 宽带基带结合带 R&S®FSW-K18 放大器测量选件的 R&S®FSW 信号与频谱分析仪，非常适用于测量增益传递函数。R&S®SMW200A 还可以根据数字基带实时应用数字预失真或高线性度的功率扫描。

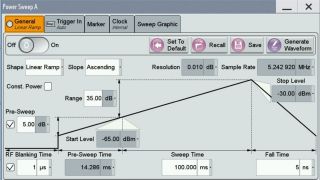

**直观的图形用户界面** - R&S®SMW200A 的直观化图形用户界面能够轻松方便地定义测试信号。

优化标准射频负载测试

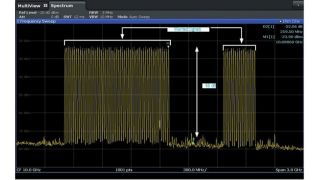

独特的噪声功率比测量解决方案：

测量解决方案优点：
解决方案与 R&S®SMW 和 R&S®FSW 结合使用
使用 R&S®SMW-K811 选件轻松创建和修改激励信号，最多支持 25 个陷波信号
在用户自定义通道带宽中，在 2 GHz 带宽范围中使用平坦信号测量高达 50 dB 的噪声功率比陷波深度时，无需预先校准
轻松读取 R&S®FSW-K19 结果；
测量噪声功率比、通道功率密度和陷波功率密度

灵活的测试信号设计

多载波连续波信号

R&S®SMW200A 矢量信号发生器和 R&S®FSW 信号与频谱分析仪是一款精简、便捷的解决方案，适用于测量被测设备群延时。R&S®FSW 的用户界面带有 R&S®FSW-K17 多载波群延时选件。R&S®SMW 可以自主控制所生成 MCCW (R&S®SMW-K61) 信号的中心频率、功率电平、载波数和载波间隔。

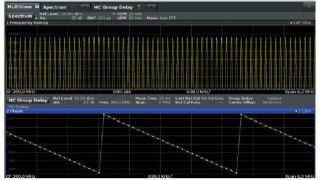

**灵活的测试信号生成** - 多载波群延时测量测试信号的载波具有任意相位和恒定载波间隔
