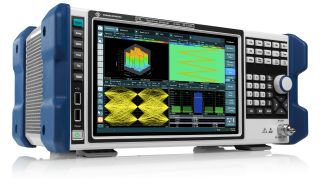

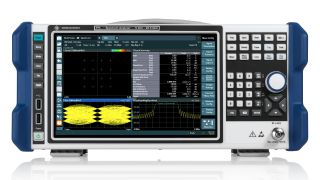

FPL 频谱分析仪

始终确保优越性能

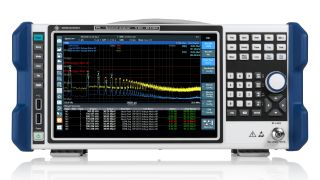

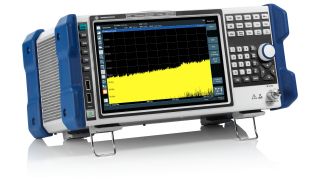

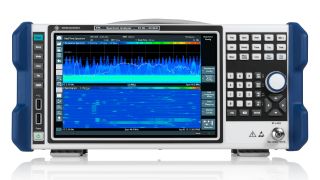

FPL 频谱分析仪 — R&S®FPL1000 频谱分析仪，低前视图

R&S®FPL1000 频谱分析仪，低前视图

主要特点

频率范围介于 5 kHz 至 26.5 GHz
SSB 相位噪声：10 kHz 偏置时典型值为 –108 dBc (1 Hz)
使用前置放大器时的 DANL：10 MHz 至 2 GHz 时典型值为 –163 dBm
轻便小巧
40 MHz 分析带宽（选件）

获取报价配置你的产品

简介

在射频实验室中，FPL 仪器和示波器或万用表一样不可或缺。单机即可执行多种测量任务。FPL 分析仪可用于频谱分析，可以使用功率探头进行高精度功率测量，还可以分析模拟和数字调制信号。

快速链接

可用的型号
可用选项
显示所有下载

特性和优点

一机多用

单机可执行多种测量任务

FPL 分析仪可用于频谱测量，可以使用功率探头进行高精度功率测量，还可以分析模拟和数字调制信号。

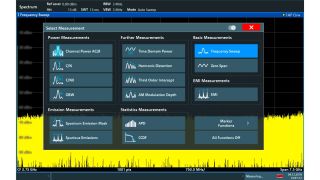

测量模式 — 测量模式 - FPL 主机标配多种高级频谱测量模式

测量模式 — 测量模式 - FPL 主机标配多种高级频谱测量模式

可靠的射频性能

低相位噪声和低显示平均噪声电平

FPL 可与高级别分析仪相提并论，它在 10 kHz 偏置（1 GHz 载波）时的相位噪声典型值为 –108 dBc (1 Hz)，三阶截止点典型值为 +20 dBm，分辨率带宽为 1 Hz 至 10 MHz，显示平均噪声电平典型值为 –163 dBm。分析仪非常适用于实验室、生产和维修应用。

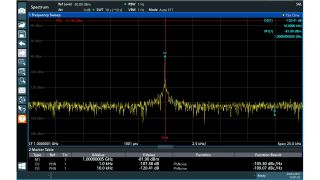

相位噪声测量 — 相位噪声测量 - 标记功能实现简单的相位噪声测量

相位噪声测量 — 相位噪声测量 - 标记功能实现简单的相位噪声测量

直观的用户界面

与智能手机一样简单直观

触摸屏可用于配置和执行测量。只需单指轻扫屏幕，即可调整中心频率或参考电平。只需双指轻扫屏幕，即可调整显示的跨度或电平范围。

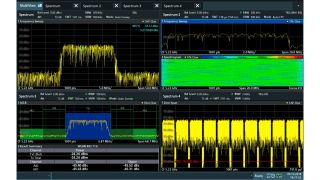

R&S®FPL1000 多视图功能 — R&S®FPL1000 多视图功能 - 序列生成工具可以执行频谱测量、邻道功率测量、时域测量和瀑布图测量

R&S®FPL1000 多视图功能 — R&S®FPL1000 多视图功能 - 序列生成工具可以执行频谱测量、邻道功率测量、时域测量和瀑布图测量

完全便携式

几乎可以随地使用……

FPL 频谱分析仪的电池盒选件仅重 6 kg 并可续航三小时，还配备了便携包和肩带，因此可以在任何需要的场所使用。

适用于 FPL1000 的便携包 — 适用于 FPL1000 的便携包 - 可选的 FPL1 便携包。借助 R&S®FPL1-B31 电池选件，用户可以操作便携包内的仪器。

适用于 FPL1000 的便携包 — 适用于 FPL1000 的便携包 - 可选的 FPL1 便携包。借助 R&S®FPL1-B31 电池选件，用户可以操作便携包内的仪器。

可用型号

可用选项

应用视频

Designed for you not for the hype - Hero green

01:37

Spectrum analyzers – Designed for you. Not for the hype

Benchtop essentials that combine quality and versatility at a great price. Such fun!

8月 29, 2024

DC Power supplies - Designed for you. Not for the hype

01:45

DC Power supplies - Designed for you. Not for the hype

A great range of benchtop DC power supplies that do exactly what they should. Big thumbs up.

6月 25, 2024

Conducted EMI pre-compliance analysis with an R&S®FPL1000 spectrum analyzer

2:16

使用 FPL 频谱分析仪的传导 EMI 预一致性分析

如何通过 EMI 测量应用探究 230 V 电灯的传导发射。相应装置包括配备 R&S®FPL1-K54 选件的 FPL 频谱分析仪和 R&S®ENV216。

8月 15, 2021

Noise figure and gain measurement using the R&S®FPL1000 spectrum analyzer

4:42

使用 FPL 频谱分析仪的噪声系数和增益测量

配有 R&S®FPL1-K30 选件时，FPL 频谱分析仪可以测量低噪声放大器 (LNA) 等组件的噪声系数和增益。

2月 16, 2019

Analog demodulation using the R&S®FPL1000 spectrum analyzer

6:37

使用 FPL 频谱分析仪的模拟解调

配有 R&S®FPL1-K7 选件时，FPL 频谱分析仪可以解调调幅、调频和调相模拟信号。R&S®FPL1-K7 非常适用于调幅和调频发射机的故障排查、振荡器的瞬态测量与稳定测量，以及脉冲或连续波信号的简单线性调频分析。

2月 16, 2019

Easy to use and portable spectrum and signal analyzer

2:26

易于使用的便携式频谱与信号分析仪

罗德与施瓦茨 FPL 频谱分析仪支持多种应用，例如功率测量以及数字与模拟调制信号分析。易于使用的便携式 FPL 非常适用于日常工作。

2月 16, 2019

Digital demodulation of a Bluetooth LE signal using the R&S®FPL1000 spectrum analyzer

6:42

使用 FPL 频谱分析仪的蓝牙低能耗信号数字解调

在本视频中，我们将展示详细分析蓝牙低能耗信号，包括调制质量和频率误差。

2月 12, 2019
