R&S®TMS Compact Direction Finding

R&S®TMS Compact Direction Finding
打开灯箱
R&S®TMS-CDF,高前视图

主要特点

  • 集成 GNSS 和罗盘的紧凑型测向天线
  • 耐用的手摇式支架能够更好地调节天线高度
  • 专为基础设施有限的临时性任务而设计
  • 系统可远程控制,坚固耐用且防风雨
  • 免工具部署概念,可在现场轻松安装

紧凑型 TMS 适用于临时部署

R&S®TMS 紧凑型监测站坚固耐用且防风雨,可在各种户外环境中使用,即使在恶劣条件下使用一段时间也能保证可靠的性能。常见的应用场景包括重大活动监测、干扰查找或者临时的站点观测。R&S®TMS 紧凑型系列配有 R&S®ARDN-STAND 手摇式支架,无需使用其他工具,现场即可组装,包括 R&S®CS-MPA 多功能天线适配器和 R&S®CS-QMK 快速安装套件。 R&S®TMS 紧凑型测向系统可以配备 R&S®ADD107、R&S®ADD207(P)、R&S®ADD307 紧凑型测向天线,或者集成 GNSS 和电子罗盘的新型 R&S®ADD507。

特性和优点

R&S®TMS 紧凑型测向监测扩展

R&S®HE600 结合紧凑型测向天线后,可以提高频谱监测性能。R&S®HE600 的射频频率范围为 20 MHz 至 8 GHz,R&S®ADD207 的测向频率范围为 600 MHz 至 6 GHz,二者可以组合使用

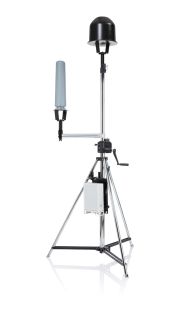

结合 R&S®HE600 的测向监测扩展
打开灯箱

结合 R&S®HE600 的测向监测扩展

R&S®TMS 紧凑型测向频率扩展

添加第二个紧凑型测向天线和第二个手摇式支架,可以结合使用 R&S®ADD107 和 R&S®ADD207,覆盖 20 MHz 至 6 GHz 的扩展测向频率范围

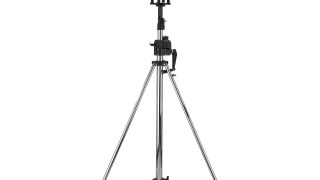

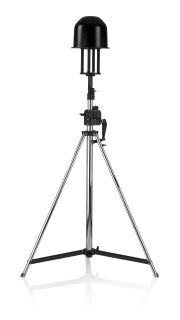

结合 R&S®ADD107 的测向频率扩展
打开灯箱

结合 R&S®ADD107 的测向频率扩展
