R&S®DDF5GTS 高速扫描测向机

R&S®DDF5GTS 高速扫描测向机

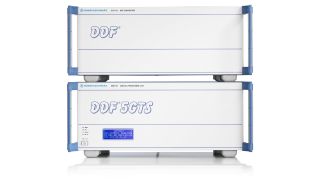

R&S®DDF5GTS High speed scanning direction finder, Front view
R&S®DDF5GTS High speed scanning direction finder, Front view
打开灯箱
R&S®DDF5GTS 高速扫描测向机

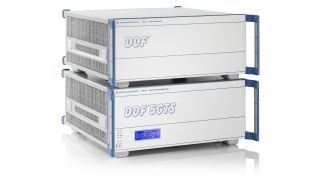

R&S®DDF5GTS High speed scanning direction finder, Side view
R&S®DDF5GTS High speed scanning direction finder, Side view
打开灯箱
R&S®DDF5GTS 高速扫描测向机

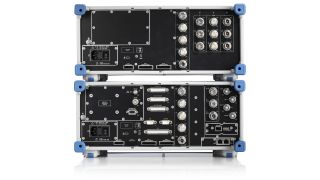

R&S®DDF5GTS High speed scanning direction finder, Back view
R&S®DDF5GTS High speed scanning direction finder, Back view
打开灯箱
R&S®DDF5GTS 高速扫描测向机

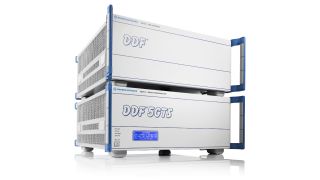

R&S®DDF5GTS High speed scanning direction finder, Hero view
R&S®DDF5GTS High speed scanning direction finder, Hero view
打开灯箱
R&S®DDF5GTS High speed scanning direction finder, Front view R&S®DDF5GTS High speed scanning direction finder, Side view R&S®DDF5GTS High speed scanning direction finder, Back view R&S®DDF5GTS High speed scanning direction finder, Hero view

主要特点

  • 三通道架构实现极为快速的测向扫描速度
  • 一流的测向精度、灵敏度和抗反射性能
  • 集成式超分辨率测向方法
  • 监测和测向性能符合 ITU 建议书
  • 性能验证符合 ITU 建议书
获取报价

快速、准确的测向

R&S®DDF5GTS 高速扫描测向机具有出色的实时带宽和测向扫描速度，以及一流的测向精度、灵敏度和抗反射性能。

快速链接

特性和优点

出色的测向扫描速度

快速频率捷变信号测向

  • 80 MHz 实时带宽提供卓越的测向扫描速度
  • 跳频发射机测向和定位，最高每秒跳频 2000 次
  • 10 µs 脉冲测向和定位
  • 高截获概率

可靠的测向结果

甚至可用于恶劣环境

  • 数字信号处理使用高位深度，实现极低的数字固有噪声
  • 极高的可调通道分辨率

超分辨率测向方法

  • 共道信号测向
  • 标配超分辨率测向方法

精确测向

甚至可用于微弱信号

  • 大量天线单元实现优异的测向灵敏度
  • 宽带测向模式和测向扫描模式下的可调相干信号集成，可提高测向灵敏度

短时信号定位

准确可靠的定位

  • 基于 GPS 同步多个 R&S®DDF5GTS（时间同步测向扫描模式）
  • 可选预分类器，用于检测低截获率信号并汇总各个结果

创新测向天线

  • 轻点鼠标，一键切换有源/无源
  • 非凡的测向灵敏度
  • 集成式可扩展雷电防护
  • 轻松更换测向天线

强大的接收路径

用于信号测量

  • 强大的特殊接收路径
  • 接收路径的模拟架构得到改进
  • 功能强大的模数转换器
  • 在微弱信号和密集信号场景中提供显著优势

高效测量

符合 ITU 建议书

  • 遵循有关测向机和接收机的所有 ITU 建议书
  • 选件可用于符合 ITU 标准的综合测量方法

接收模式

带集成式天线矩阵

  • 极为快速的全景扫描
  • 除了测向天线之外，集成式天线矩阵还可以连接至多三个甚高频/特高频/超高频接收天线和至多三个高频接收天线（选件）
  • 独立的数字下变频器通道
  • 选择具有最大信号电平的天线单元

可用型号

可用选项
