R&S®DDF550 宽带测向机

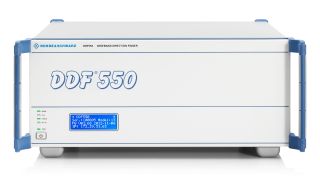

R&S®DDF550 宽带测向机
R&S®DDF550 Wideband direction finder, Front view
R&S®DDF550 Wideband direction finder, Front view
打开灯箱

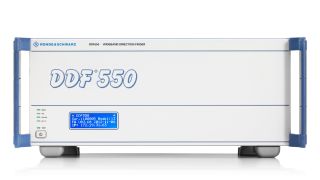

R&S®DDF550 宽带测向机
R&S®DDF550 Wideband direction finder, Front view
R&S®DDF550 Wideband direction finder, Front view
打开灯箱

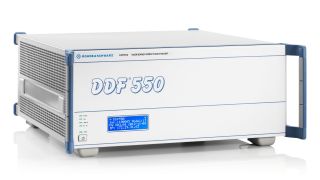

R&S®DDF550 宽带测向机
R&S®DDF550 Wideband direction finder, Side view
R&S®DDF550 Wideband direction finder, Side view
打开灯箱

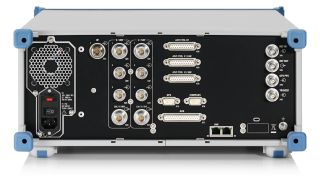

R&S®DDF550 宽带测向机
R&S®DDF550 Wideband direction finder, Back view
R&S®DDF550 Wideband direction finder, Back view
打开灯箱
R&S®DDF550 Wideband direction finder, Front view R&S®DDF550 Wideband direction finder, Front view R&S®DDF550 Wideband direction finder, Side view R&S®DDF550 Wideband direction finder, Back view

主要特点

  • 一流的测向精度、灵敏度和抗反射性能
  • 出色的 80 MHz 实时带宽提供卓越的测向扫描速度（甚高频/特高频/超高频）
  • 轻松集成到移动平台
  • 测向天线带集成式可扩展雷电防护
  • 频率范围高达 6 GHz 的信号测向
获取报价

快速、精确的测向

R&S®DDF550 快速宽带测向机具有出色的实时带宽和测向扫描速度，以及一流的测向精度、灵敏度和抗反射性能。

快速链接

特性和优点

出色的测向扫描速度

短时信号测向

  • 高截获概率
  • 出色的 80 MHz 实时带宽提供卓越的测向扫描速度
  • 高截获率短时和频率捷变信号测向
  • 更高的测量速度（选件）

可靠的测向结果

甚至可用于恶劣环境

  • 测向天线具备大量天线单元（甚高频/特高频/超高频），实现更好的抗反射性能
  • 即使反射率高达 50%，也能在甚高频/特高频/超高频范围内保持稳定方位

精确测向，准确定位

甚至可用于微弱信号和短时信号

  • 大量天线单元实现优异的测向灵敏度
  • 宽带测向和测向扫描模式下的可调相干信号集成，可提高测向灵敏度
  • 基于 GPS 同步多个 R&S®DDF550（时间同步测向扫描模式）
  • 可选预分类器检测低截获率信号并汇总各个结果

创新测向天线

  • 轻点鼠标，一键切换有源/无源
  • 非凡的测向灵敏度
  • 集成式可扩展雷电防护
  • 轻松更换测向天线

强大的接收路径

用于信号测量

  • 强大的特殊接收路径
  • 接收路径的模拟架构得到改进
  • 功能强大的模数转换器
  • 在微弱信号和密集信号场景中提供显著优势

功能强大的硬件

罗德与施瓦茨开发

  • 内部开发和制造所有测向系统组件，包括测向天线
  • 根据功能强大的 FPGA 以最大速度进行信号处理
  • 使用强大的罗德与施瓦茨 ASIC
  • 精密预选实现非凡的抗强信号性能

高效测量

符合 ITU 建议书

  • R&S®DDF550 符合有关测向机和接收机的所有 ITU 建议书。
  • 选件可用于符合 ITU 标准的综合测量方法，包括：频率和频率偏移、场强、调制、频谱占用和带宽选件

多通道信号处理

  • 网络系统中的多通道信号检测和分析
  • 100 多个通道的并行多通道输出
  • 使用 R&S®DDF550DDCE 和 R&S®CA120FFP 的 R&S®DDF550 实时带宽多通道数字下变频 (DDC) 信号提取；
  • 使用 R&S®DDF550-HRP 和 R&S®CA120DSC 自动检测固定频率和突发信号；
  • 使用 R&S®DDF550-ST 自动检测频率捷变短时信号；
