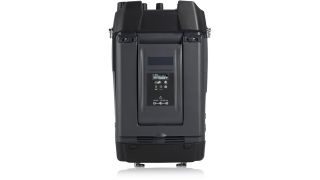

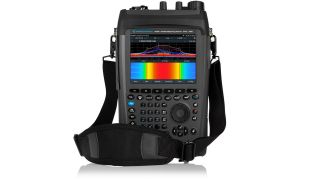

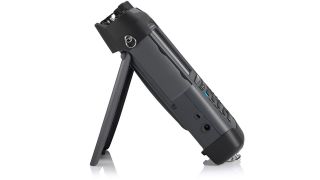

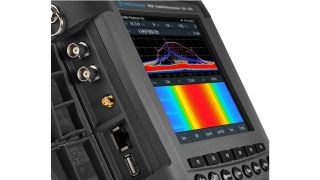

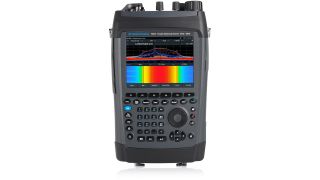

R&S®PR200 便携式监测接收机

主要特点

检测、分析和定位 8 kHz 至 8 GHz 范围内的射频信号（配备 R&S®HE400DC 和 R&S®HE800-DC30 时适用范围可分别扩展至 20 GHz 和 33 GHz）
广泛的预选滤波和自动过载保护
多方位的频域和时域分析工具，实时带宽高达 40 MHz
在整个频率范围内以 60 GHz/s 的速度快速进行全景扫描
尺寸小、重量轻、功耗低，采用面向应用的直观用户界面，并经过优化以用于严苛的现场操作环境

获取报价

手持式设计，实现高性能频谱监测和测向

R&S®PR200 便携式监测接收机经过精心设计，为频谱监测、干扰捕获、频谱清理和站点测试提供有效支持。它能够可靠地检测、分析和定位 8 kHz 至 8 GHz 范围内的信号，配备带集成式下变频器的 R&S®HE400DC 和 R&S®HE800-DC30 手持式定向天线时适用范围可分别扩展至 20 GHz 和 33 GHz。配备罗德与施瓦茨紧凑型测向天线后，R&S®PR200 还支持在 9 MHz 至 8 GHz 范围内进行测向。R&S®PR200 针对现场操作进行了优化，完善地平衡了射频性能、速度和可操作性，并提供广泛的测量功能，可用于测量复杂的 5G 信号。

快速链接

可用的型号
可用选项
显示所有下载

特性和优点

性能优越

专家设计

R&S®PR200 具有高速数字信号处理功能，可以实时无缝捕获和处理信号。它采用先进的手持式设计，兼具当下频谱监测传感器的特性与功能。

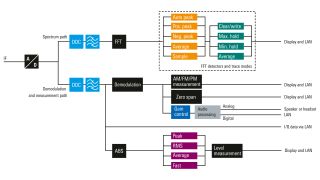

**R&S®PR200 的数字信号处理简图** - R&S®PR200 以典型的罗德与施瓦茨监测接收机设计为基础，采用双路径数字下变频器 (DDC) 实现并行监测和不间断解调

提供多种工具

多方位的频谱监测、信号分析和地理定位工具

在零跨度模式下同步进行时域和频域分析
时间门选通频谱可用于时分双工 (TDD) 网络中的干扰捕获
地图测绘功能支持三角测量和电平测绘
同步显示彩色频谱和瀑布图
提供多种记录和回放模式
手动和自动测向
根据 ITU 建议书分析模拟信号

紧凑、轻巧

优化尺寸、重量和功率

重量约为 3.5 kg（含电池）
电池充电一次通常可使用 3.5 小时
功耗为 16 W 左右

**使用 R&S®HE400 手动测向** - 使用 R&S®HE400 手持式定向天线和传统的手持式定向天线进行手动归航测向和自动三角测量

直观的用户界面

精心设计的用户界面实现简易操作

面向应用的用户界面
采用高对比度的配色方案，即使在明亮的阳光下也便于读取数据
一键保存屏幕截图和记录测量结果
提供专用于归航操作的智能手机应用程序

性能强大、可靠

经优化以用于现场使用

内置自测试功能，便于实施故障排查和维护
可快速连接或断开罗德与施瓦茨的手持式/紧凑型测向天线
可戴手套进行操作
发光键盘
根据 MIL-PRF-28800F 环境标准进行测试

I/Q 快照、记录和回放

微小细节至关重要

实时带宽高达 40 MHz，可提供数字 I/Q 数据的快照记录并进行回放
多种可由用户自定义的触发条件（手动、外部和用户自定义触发）
直接使用 I/Q 分析应用程序通过仪器的图形用户界面或基于电脑的 R&S®PR200 图形用户界面评估记录的数字 I/Q 数据
最高 1 微秒/行的一流时间分辨率（瀑布图）
可导出为各种文件扩展格式（I/Q、HDF5、ARB 和 WAV）

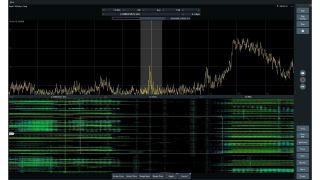

**结果回放** - 使用 I/Q 分析应用程序通过 R&S®PR200 图形用户界面离线评估记录的 2.4 GHz ISM 频段信号
