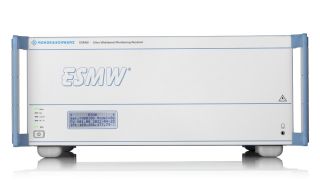

R&S®ESMW Ultra wideband monitoring receiver, Front Low
R&S®ESMW Ultra wideband monitoring receiver, Front Low
打开灯箱
R&S®ESMW Ultra wideband monitoring receiver

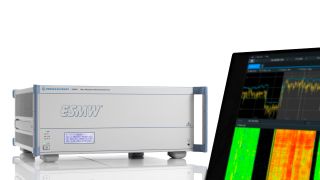

R&S®ESMW Ultra wideband monitoring receiver, Application Image
R&S®ESMW Ultra wideband monitoring receiver, Application Image
打开灯箱
R&S®ESMW Ultra wideband monitoring receiver

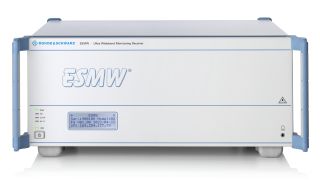

R&S®ESMW Ultra wideband monitoring receiver, Front High
R&S®ESMW Ultra wideband monitoring receiver, Front High
打开灯箱
R&S®ESMW Ultra wideband monitoring receiver

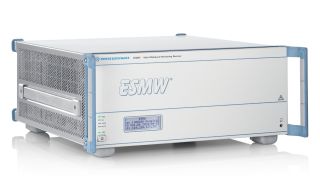

R&S®ESMW Ultra wideband monitoring receiver, Side view
R&S®ESMW Ultra wideband monitoring receiver, Side view
打开灯箱
R&S®ESMW Ultra wideband monitoring receiver

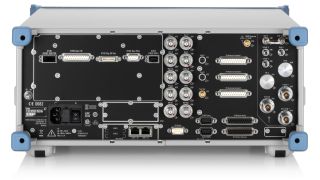

R&S®ESMW Ultra wideband monitoring receiver, Back high
R&S®ESMW Ultra wideband monitoring receiver, Back high
打开灯箱
R&S®ESMW Ultra wideband monitoring receiver

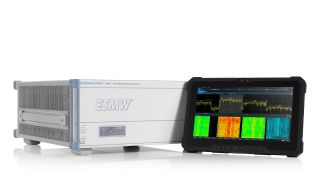

R&S®ESMW Ultra wideband monitoring receiver, Application Image
R&S®ESMW Ultra wideband monitoring receiver, Application Image
打开灯箱
R&S®ESMW Ultra wideband monitoring receiver

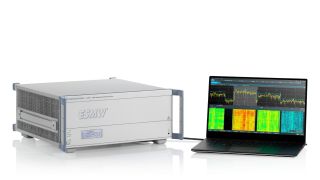

R&S®ESMW Ultra wideband monitoring receiver, Application Image
R&S®ESMW Ultra wideband monitoring receiver, Application Image
打开灯箱
R&S®ESMW Ultra wideband monitoring receiver

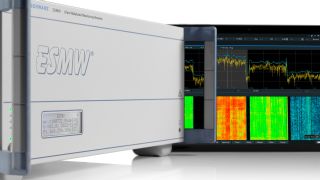

R&S®ESMW Ultra wideband monitoring receiver, Application Image
R&S®ESMW Ultra wideband monitoring receiver, Application Image
打开灯箱
R&S®ESMW Ultra wideband monitoring receiver, Front Low R&S®ESMW Ultra wideband monitoring receiver, Application Image R&S®ESMW Ultra wideband monitoring receiver, Front High R&S®ESMW Ultra wideband monitoring receiver, Side view R&S®ESMW Ultra wideband monitoring receiver, Back high R&S®ESMW Ultra wideband monitoring receiver, Application Image R&S®ESMW Ultra wideband monitoring receiver, Application Image R&S®ESMW Ultra wideband monitoring receiver, Application Image

主要特点

  • Frequency range for monitoring and TDOA from 8 kHz to 40 GHz
  • Up to 2 GHz real-time bandwidth for monitoring next-generation wideband signals
  • Outstanding ITU-compliant RF performance and dynamic range for the most challenging spectrum environments
  • Extremely fast panorama scan speeds of up to 2.6 THz/s
  • Wideband I/Q data streaming of up to 125 MHz via 10GE I/Q interface
获取报价

Exceptional performance for next-generation radio monitoring

The R&S®ESMW ultra wideband monitoring receiver is the perfect solution to address future trends and challenges in spectrum monitoring. It covers the wide frequency range from 8 kHz to 40 GHz with an outstanding real-time bandwidth of up to 2 GHz. Thanks to its exceptional ITU-compliant RF performance, modular upgradability, and rich feature set, the R&S®ESMW provides the advanced capabilities needed for reliable measurements of current and upcoming wideband signals in high-density spectrum environments.

快速链接

特性和优点

Outstanding RF performance

  • Reliable measurements in the most challenging spectrum environments
  • Extremely high dynamic range to detect even weak signals among strong unwanted signals
  • Switched suboctave filterbanks and tunable bandpass filters protect against harmonics and intermodulation from strong out-of-band signals
  • Optimal trade-off between linearity and sensitivity for unknown signal environments
  • Multiple receiver modes for adaption to the signal scenario
  • Automatic attenuation setting up to 40 dB in 1 dB steps

打开灯箱

Fully ITU-compliant spectrum monitoring

  • Hardware specifications in line with the ITU Handbook of Spectrum Monitoring
  • Specifications verified in line with ITU-R measurement procedures
  • Measurement of modulation parameters of analog signals in line with the ITU Handbook of Spectrum Monitoring
  • Bandwidth measurements in line with ITU-R SM.328-11 and SM.443-4

打开灯箱

Up to 2 GHz real-time bandwidth

  • Wide instantaneous spectral overviews
  • Measurements of current and future wideband signals in real-time
  • Extremely fast spectrum scan speeds of up to 2.6 THz/s
  • Minimum signal duration of only 75 ns for 100 % probability of intercept (POI)
  • Wideband I/Q data streaming

Innovative user interface

  • Remote control via the R&S®ESMW GUI running on a Windows laptop or tablet
  • Intuitive application-oriented user interface
  • Tab-based operation for fast switching between measurements
  • Multiple and customizable measurement result displays for each application
  • High contrast color schemes for good readability

打开灯箱
