城市环境中的便携式无线电监测接收机和天线

接收机和测向机

罗德与施瓦茨接收机和测向机

高效、通用的无线电监测,结合快速、精确的测向,适用于复杂的信号场景。

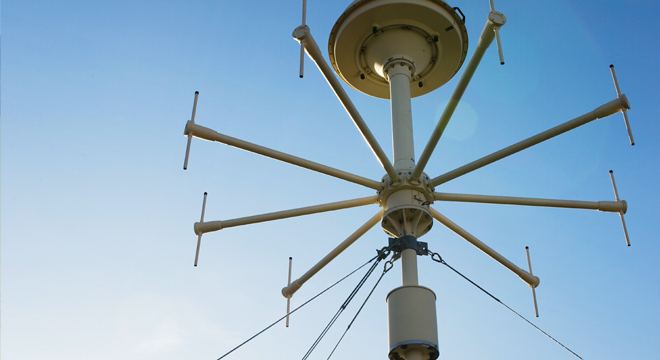

罗德与施瓦茨的监测接收机、无线电测向机和创新的测向天线以优异性能和可靠性而闻名,深受全球频谱监测和通信情报系统的信赖。这些组件涵盖 8 kHz 至 40 GHz 的频率范围,甚至可以检测到极短的频率捷变信号。组件适用于所有应用和平台,包括手持式解决方案和大型无线电定位系统。

罗德与施瓦茨拥有 50 多年的无线电监测和无线电定位设备设计经验,并据此开发和制造所有组件。

手持式
产品名称
监测频率范围
测向频率范围
实时带宽
解调带宽
监测扫描速度
监测频率范围
8 kHz - 8 GHz / 20 GHz / 33 GHz
测向频率范围
20 MHz - 6 GHz
实时带宽
40 MHz
解调带宽
40 MHz
监测扫描速度
60 GHz/s(1 MHz 分辨率时)
室外
产品名称
监测频率范围
测向频率范围
实时带宽
解调带宽
监测扫描速度
监测频率范围
8 kHz - 6 GHz
测向频率范围
300 kHz - 6 GHz
实时带宽
20 MHz
解调带宽
20 MHz
监测扫描速度
22 GHz/s(1 MHz 分辨率时)
监测频率范围
8 kHz - 8 GHz
测向频率范围
20 MHz - 8 GHz
实时带宽
40 MHz
解调带宽
40 MHz
监测扫描速度
64 GHz/s @ 1 MHz res.
监测频率范围
8 kHz - 8 GHz
测向频率范围
20 MHz - 6 GHz
实时带宽
40 MHz
解调带宽
40 MHz,内部 1 MHz,通过 LAN
监测扫描速度
44 GHz/s(100 kHz 分辨率时)
桌面和机架安装,单通道
产品名称
监测频率范围
测向频率范围
实时带宽
解调带宽
监测扫描速度
监测频率范围
8 kHz - 8 GHz
测向频率范围
20 MHz - 6 GHz
实时带宽
40 MHz
解调带宽
40 MHz
监测扫描速度
64 GHz/s(1 MHz 分辨率时)
监测频率范围
8 kHz - 6 GHz
测向频率范围
300 kHz - 6 GHz
实时带宽
20 MHz
解调带宽
20 MHz
监测扫描速度
22 GHz/s(1 MHz 分辨率时)
监测频率范围
8 kHz - 32 MHz
测向频率范围
-
实时带宽
32 MHz
解调带宽
5 MHz
监测扫描速度
60 GHz/s(100 kHz 分辨率时)
监测频率范围
8 kHz - 26.5 GHz
测向频率范围
300 kHz - 8.5 GHz
实时带宽
80 MHz
解调带宽
20 MHz
监测扫描速度
90 GHz/s(2 MHz 分辨率时)
监测频率范围
8 kHz - 18 GHz
测向频率范围
300 kHz - 8.5 GHz
实时带宽
80 MHz
解调带宽
20 MHz
监测扫描速度
120 GHz/s(2 MHz 分辨率时)
监测频率范围
8 kHz - 40 GHz
测向频率范围
-
实时带宽
2 GHz
解调带宽
125 MHz
监测扫描速度
2.6 THz/s @ 2 MHz res.
机架安装,多通道
产品名称
监测频率范围
测向频率范围
实时带宽
最小测向信号持续时间
最大测向扫描速度
监测频率范围
8 kHz - 6 GHz
测向频率范围
300 kHz - 6 GHz
实时带宽
80 MHz
最小测向信号持续时间
100 µs
最大测向扫描速度
40 GHz/s(25 kHz 分辨率时)
监测频率范围
8 kHz - 6 GHz
测向频率范围
300 kHz - 6 GHz
实时带宽
80 MHz
最小测向信号持续时间
60 µs
最大测向扫描速度
60 GHz/s(25 kHz 分辨率时)
监测频率范围
8 kHz - 30 MHz
测向频率范围
300 kHz - 30 MHz
实时带宽
30 MHz
最小测向信号持续时间
40 µs
最大测向扫描速度
35 GHz/s(1.25 kHz 分辨率时)
电子情报
产品名称
频率范围
实时带宽
扫描速度
分析通道
脉冲处理
频率范围
8 kHz - 40 GHz
实时带宽
2 GHz
扫描速度
2500 GHz/s(10 MHz 分辨率时)
分析通道
8
脉冲处理
每秒最多可处理一千万个脉冲
交通管制
产品名称
ATC 或 VTS 应用
频率范围
业务通道数量
室外测向单元
地面发射机抑制
ATC 或 VTS 应用
船舶交通管制
频率范围
118 MHz 至 250 MHz
业务通道数量
最多 32 个
室外测向单元
地面发射机抑制
-
ATC 或 VTS 应用
ATC direction and location system
频率范围
117.975 MHz 至 450 MHz
业务通道数量
最多 32 个
室外测向单元
地面发射机抑制
内含
